Karaoke function (CSJ-05A)
"Mic input" "Mic Echo" are equipped.
Can enjoy Karaoke without amplifier.
CSJ-05A CSJ-05
Surprising power packed in compact BMB
- Home
- Product Info
- Home Category
- CSJ Series

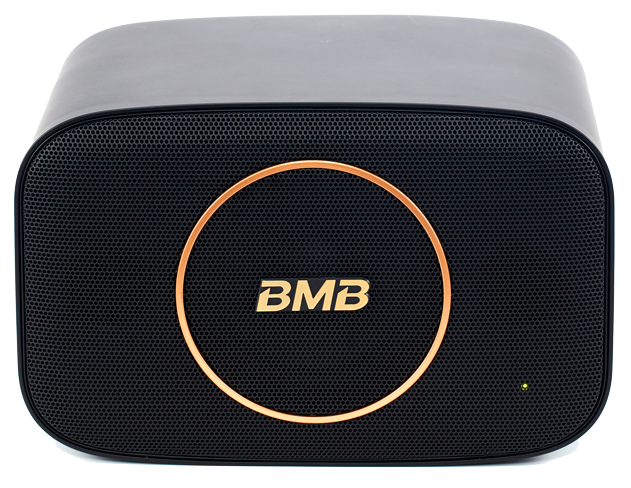

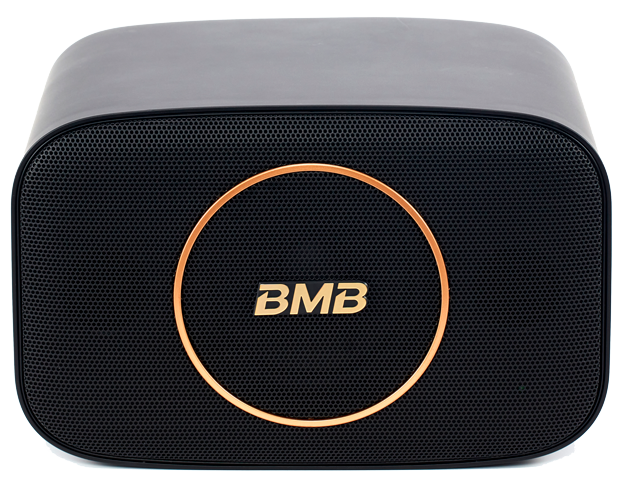

40w built-in amplifier, 4.5-inch compact Bluetooth speaker.
Mic input Echo is included, karaoke is possible.
Can be combined a pair of CSJ-05A by Wireless with TWS function.
Interior design that can be installed vertically or horizontally，Enjoy stereo sound in combination with CSJ-05.
Selling
point
- 40w 4.5 inch Bluetooth speaker with Karaoke function.
- TWS wireless link function provides more connection style, fit for various scene.

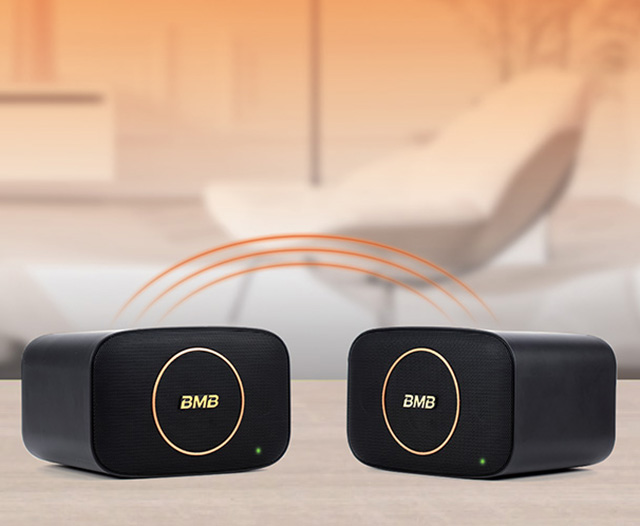

Wireless link(CSJ-05A)
For stereo use, 2pcs of CSJ-05A can be linked by Wireless link“TWS”function.

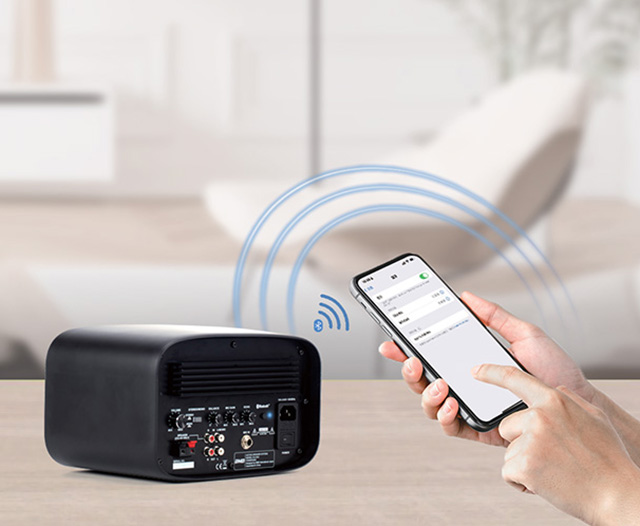

Bluetooth connection
Bluetooth pairing with playback device

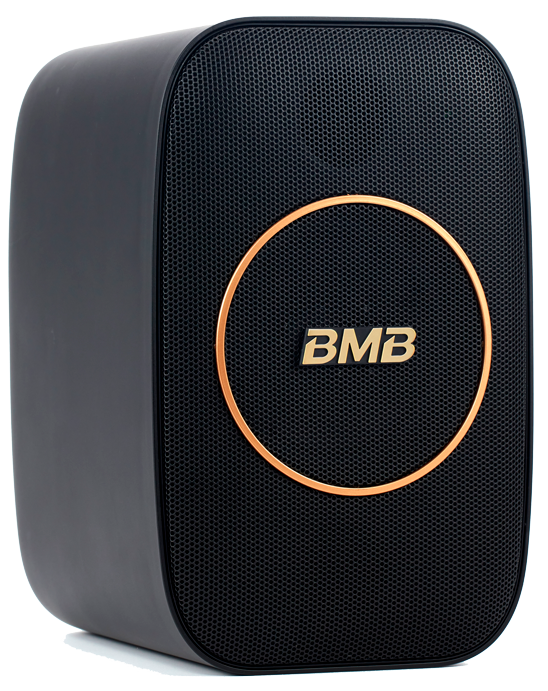

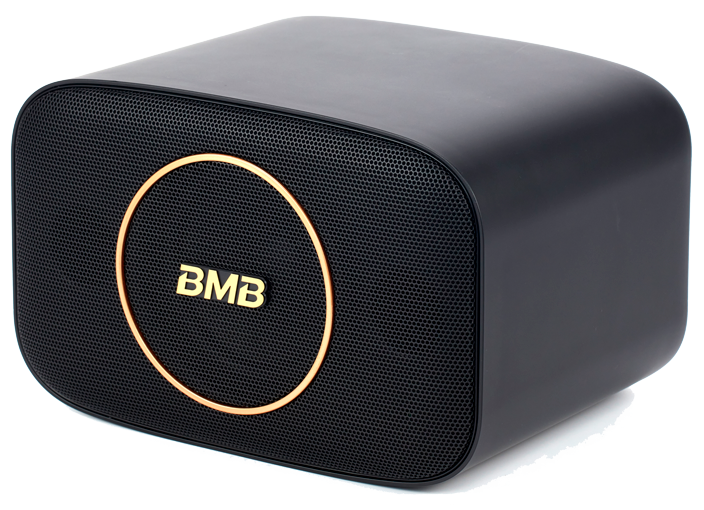

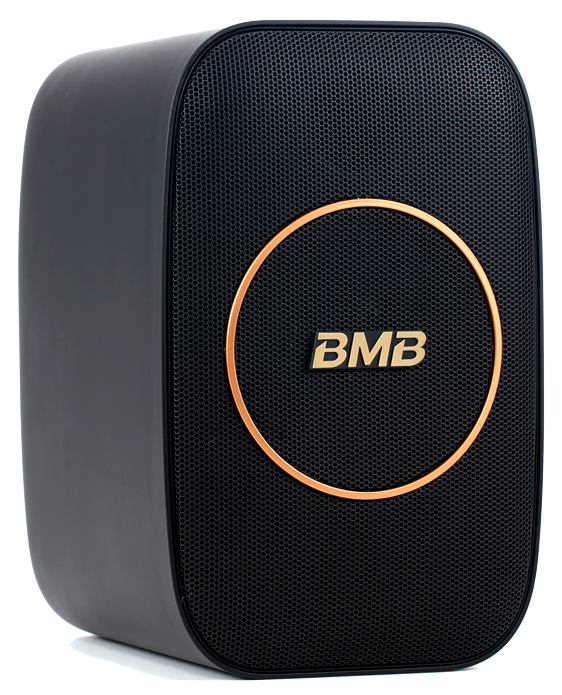

Multiple installation choices
Supports vertical and horizontal set up.

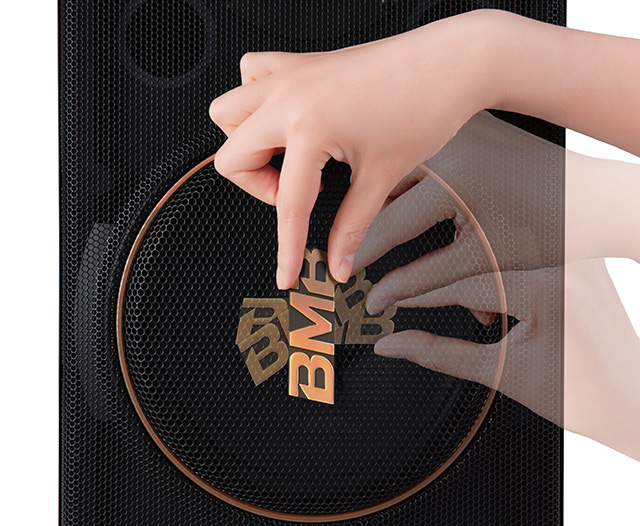

and can be rotated BMB Logo.
CSJ-05A
| CSJ-05A [5"] | |
|---|---|
| System Type |
Full range active speaker |
| Frequency Range(-10dB) *1 |
75Hz-18kHz |
| Power Consumption1 |
40W+40W |
| Dimensions (WxHxD) |
247.5mm x 157mm x 188.6mm (9.7" x 6.2" x 7.4") |
| Shipping Dimensions (WxHxD) |
310mm x 225mm x 250mm (12.2" x 8.86" x 9.84") |
| Net Weight |
3.0kg(6.6Ibs) |
| Shipping Weight |
3.94kg(8.67Ibs) |

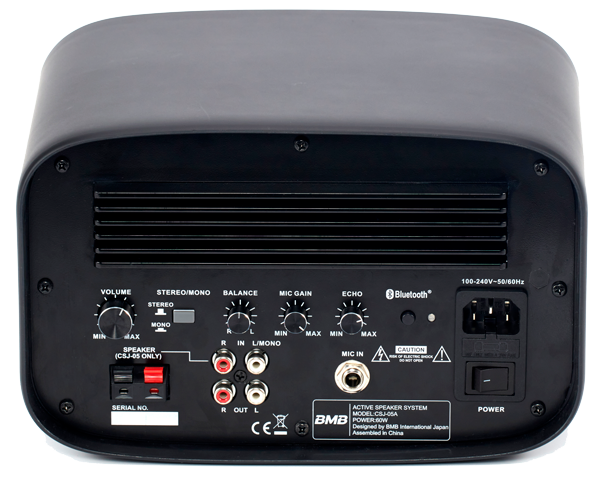

| Connectors | Audio IN/OUT(RCA) SPEAKER OUT(CSJ-05 ONLY) MIC IN (PHONE,UNBALANCED) |
| Speaker Unit |
Full range unit： 116mm（4.5"）Cone 25.5mm（1"）Voice Coil x 1 |

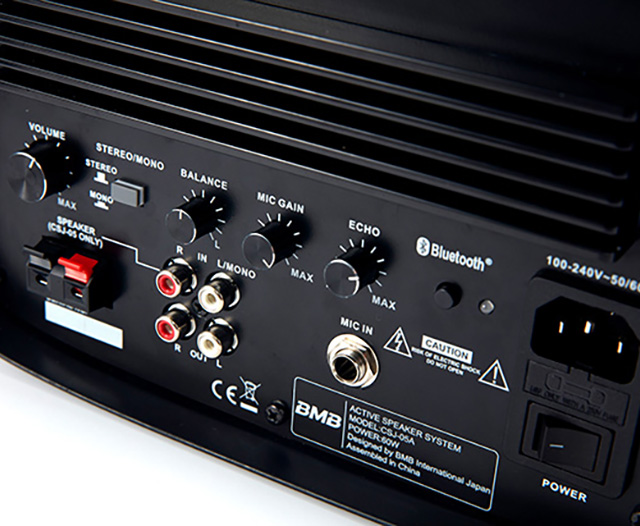

| Controls | VOLUME STEREO/MONO BALANCE MIC GAIN ECHO |
| Indicator | Power ON(Green LED) Bluetooth ON(Blue LED)/TWS(Green LED) |
| Bluetooth | Version 5.3 Range : Up to 9m (30ft) |
| Input Voltage |
100-240V/50-60Hz |
| Enclosure Construction |
5mm（0.196"）ABS |

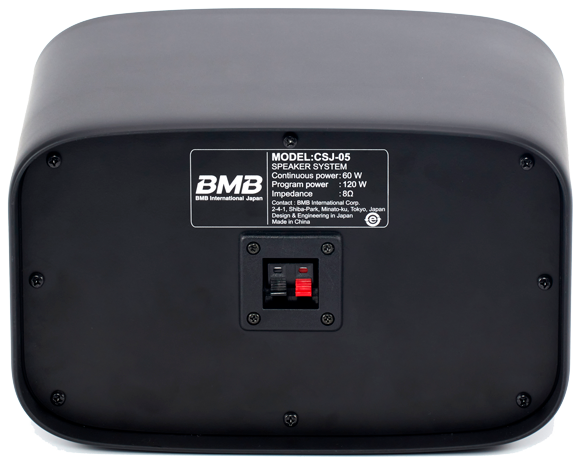

CSJ-05
| CSJ-05 [5"] | |
|---|---|
| System Type |
Full range speaker |

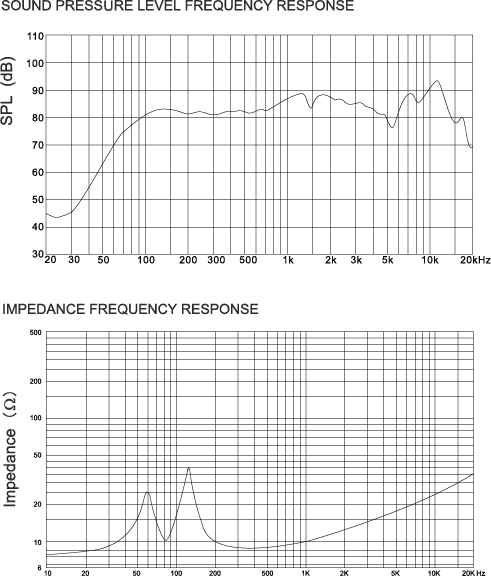

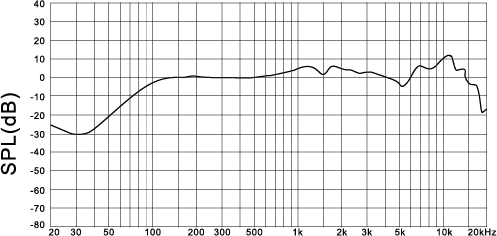

| Frequency Range(-10dB) *1 |
62Hz-18kHz |
| Sound Pressure Level *2 |
82dB |
| Impedance | 8Ω |
| Power Capacity |
Continuous 60W, Program 120W |
| Dimensions (WxHxD) |
247.5mm x 157mm x 188.6mm(9.7" x 6.2" x 7.4") |
| Shipping Dimensions (WxHxD) |
310mm x 225mm x 256mm(12.2" x 8.86" x 9.84") |
| Net Weight |
2.64kg (5.82lbs) |
| Shipping Weight |
3.34kg (7.36llbs) |
| Input Connectors |
12mm（spacing distance）terminal |
| LF Unit |
116mm(4.5") Cone, 25.5mm(1") Voice Coil x 1 |
| Enclosure Construction |
5mm（0.196"）ABS |
*2 1w1m on-axis, swept-sine in anechoic environment
