PC Editor is provided to setup each sound parameter. (EQ, Comp, etc.)
This model can create the best Karaoke sound for any room or hall utilizing sound editing software via computer.
The voice effect feature - HANAMICHI - is pre-installed so the orchestra sound shifts from side to side while the singer stays in the center. (KSP-100)
The Room Acoustic feature is installed to automatically adjust the sound field to all environments depending on the shape of the room and material of the walls, the floor and the ceiling. (KSP-100)
An Anti-Feedback feature is used to ensure the best indoor feedback control.
KSP-100 is made in Japan.

Selling
point

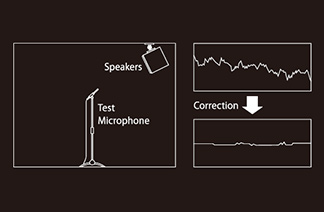

Room Acoustic(KSP-100)
Room Acoustic (acoustic calibration system) is used by professional audio engineers. The Room Acoustic technology can optimise the sound quality caused by the shape of the room, the wall materials or the sound device including speakers and amplifiers. When the measurement microphone is connected, Room Acoustic calibrates the target frequency characteristics. The target frequency characteristics can be set to flat, low-boost, etc, according to each user’s preference.

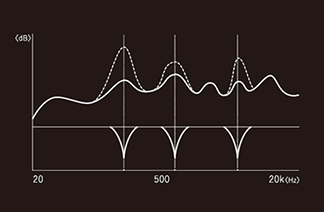

Anti-Feedback(KSP-100)
“Dynamic Filter” controls feedback automatically.
“Static Filter” prevents feedback by measuring the feedback occurrence point.
"Diffuse" continuously shifts vocal frequency slightly.
(KSP-50)
"Diffuse" continuously shifts vocal frequency slightly.

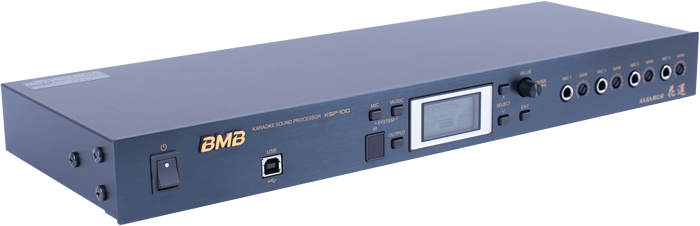

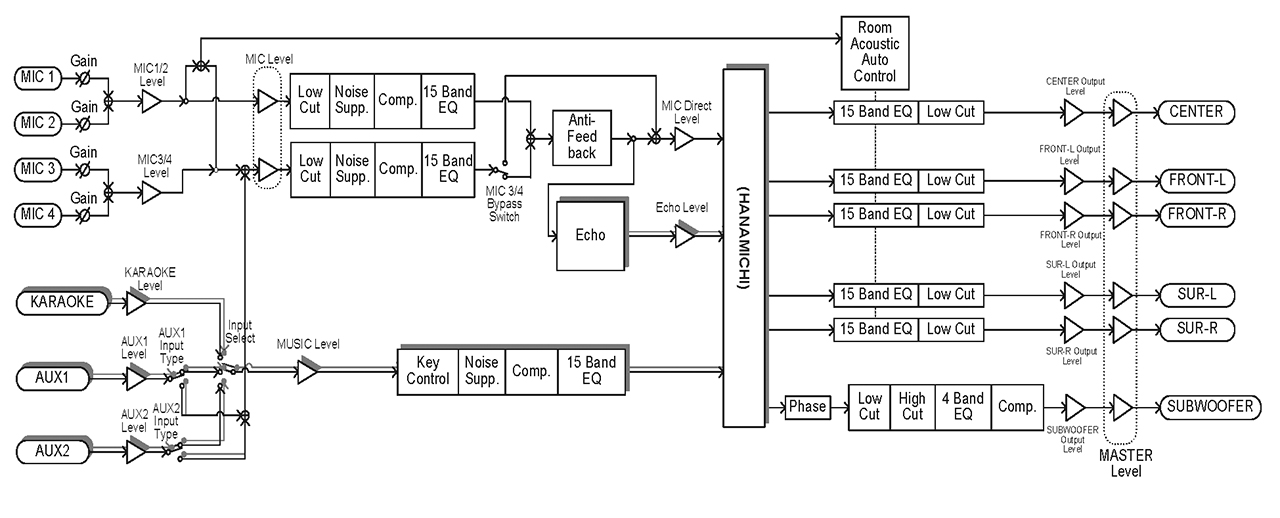

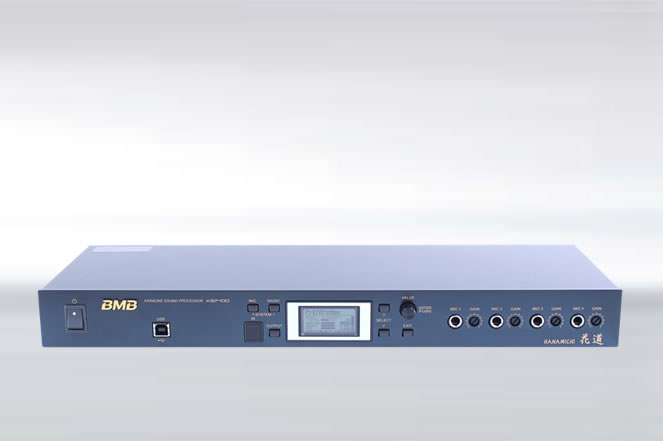

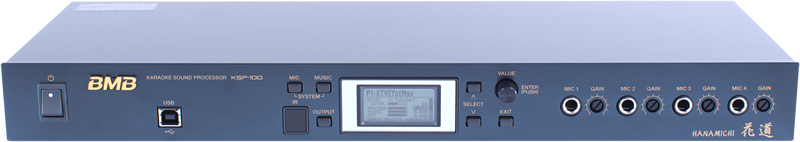

KSP-100 (SE)

KSP-100 (SE)

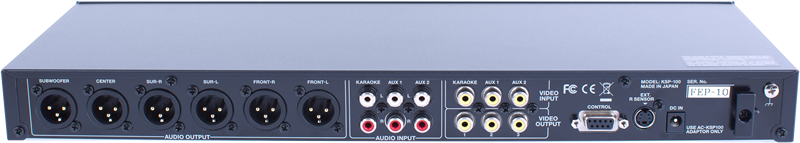

Mic Input 4systems (MIC 1 - MIC 4)
1/4-inch phone type
Audio Input 3systems
(KARAOKE, AUX1, AUX2)
RCA phono type
Video Input 3systems
(KARAOKE, AUX1, AUX2)
Composite RCA phono type
Video Output 3systems Composite RCA phono type
Audio Output 5.1Channel systems
(XLR type)
Sampling
Rate/Bits
44.1kHz/24bits
Frequency
Response
20Hz~20kHz
Control
Connecters
USB (B type)
RS-232C (DB-9 type)
EXT. R SENSOR connector
(4-Pin mini DIN type)
LCD Display Graphic LCD 128×64 dots Black and White
DC Input DC9V
AC Input Adaptor
(AC100V~240V)
Dimensions
(mm)
420(W)×44(H)×167(D)
Weight 2.0kg

Catalog Owner's Manual PC Editor System Update

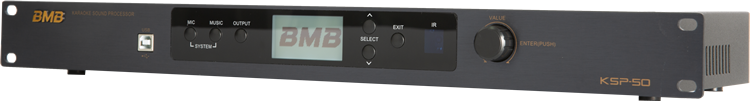

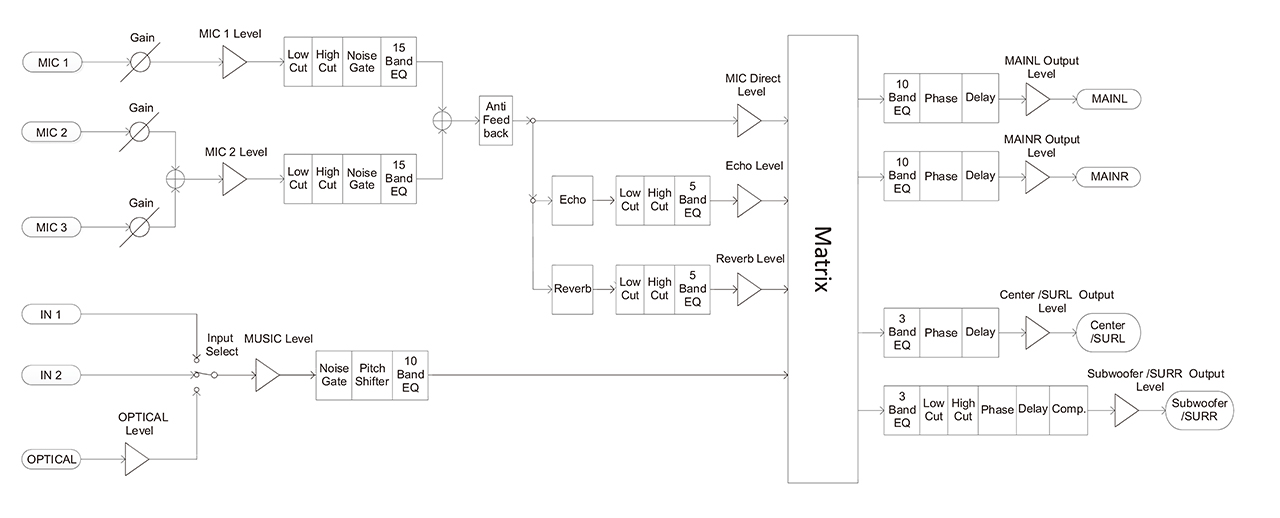

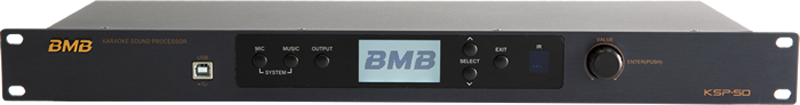

KSP-50

KSP-50 (SE)
Mic Input 3systems (MIC1 - MIC3)
1/4-inch phone type
Audio Input 3systems(IN1, IN2)
RCA phone type, Optical
Video Input -
Video Output -
Audio Output 3.1 or 4 Channel systems
(XLR type)
Sampling
Rate/Bits
48kHz/24bits
Frequency
Response
20Hz~20kHz
Control
Connecters
USB(B type)
RS-232C(DB-9 type)
LCD Display Graphic LCD 128×64 dots Black and White
DC Input -
AC Input 100V~240V
Dimensions
(mm)
482(W)×45(H)×161(D)
Weight 2.3kg

Catalog Owner's Manual PC Editor
