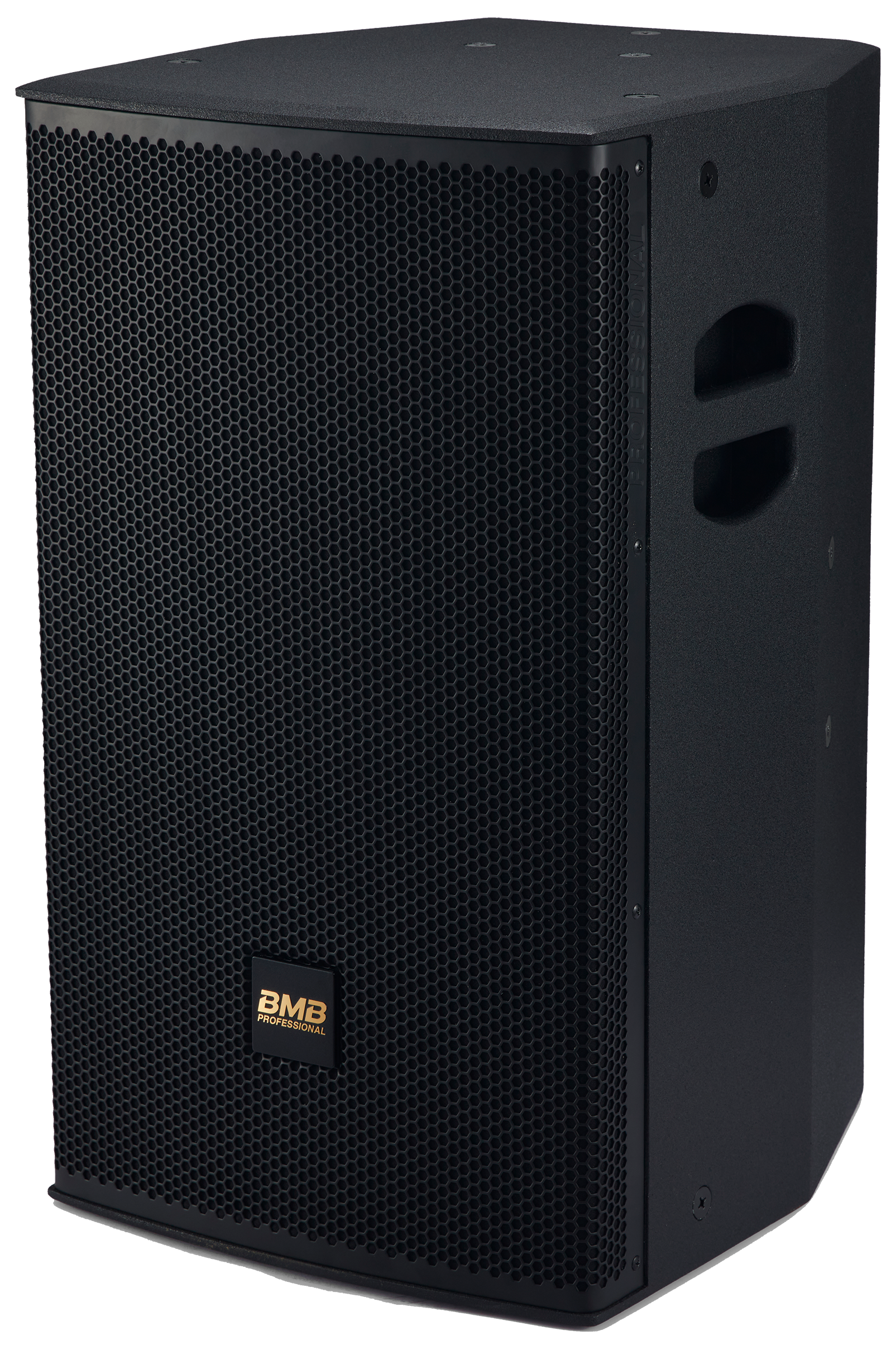

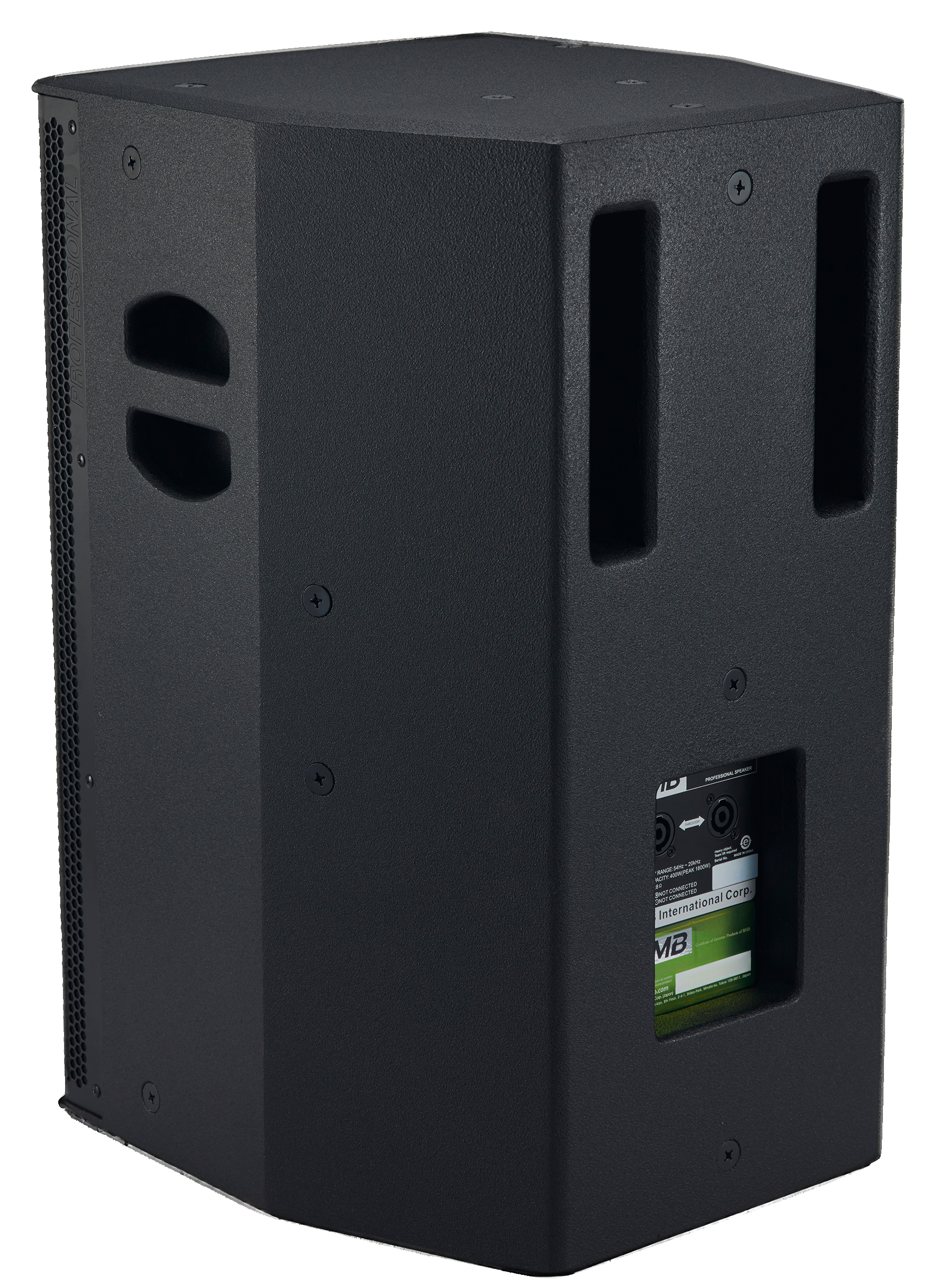

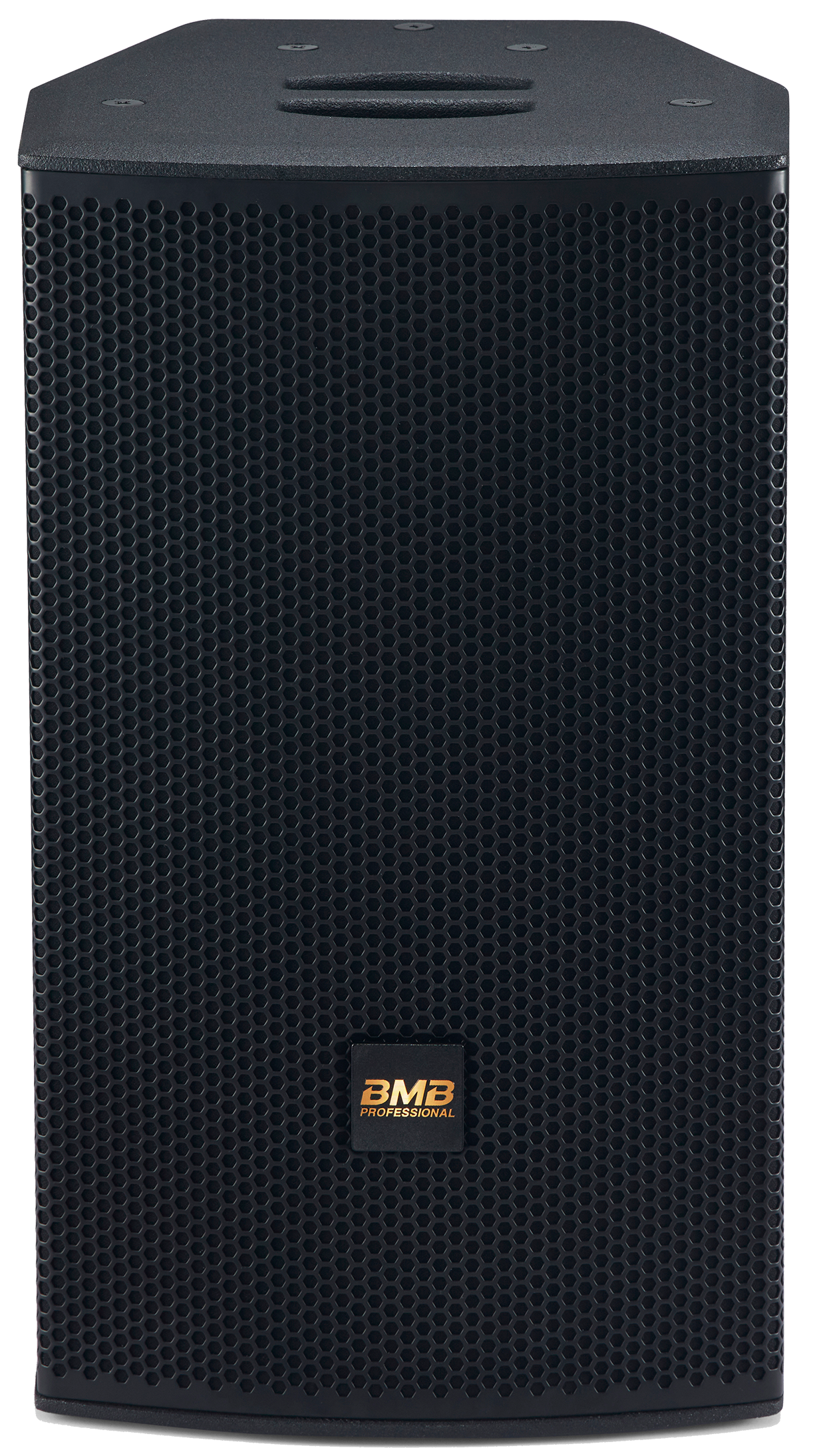

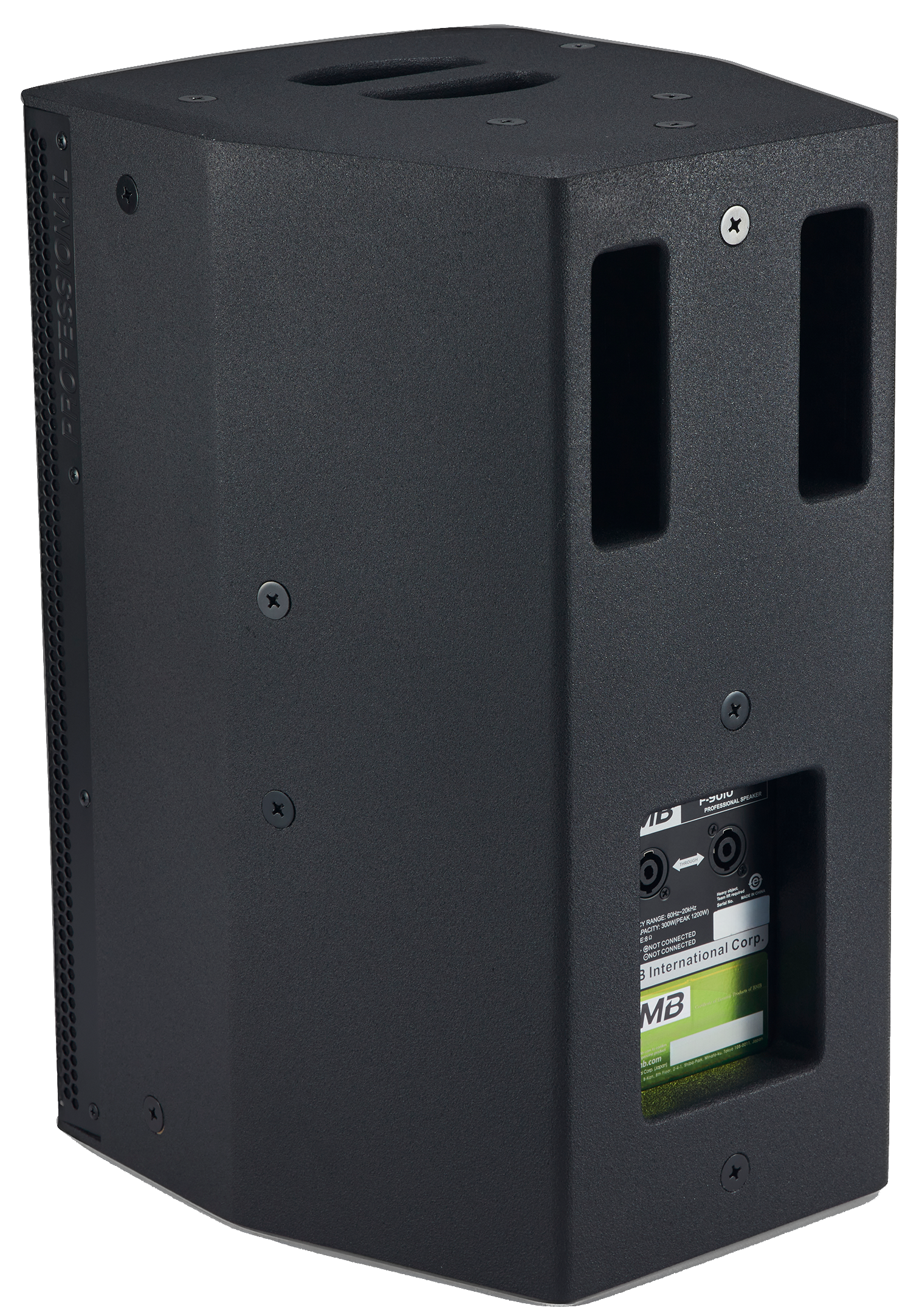

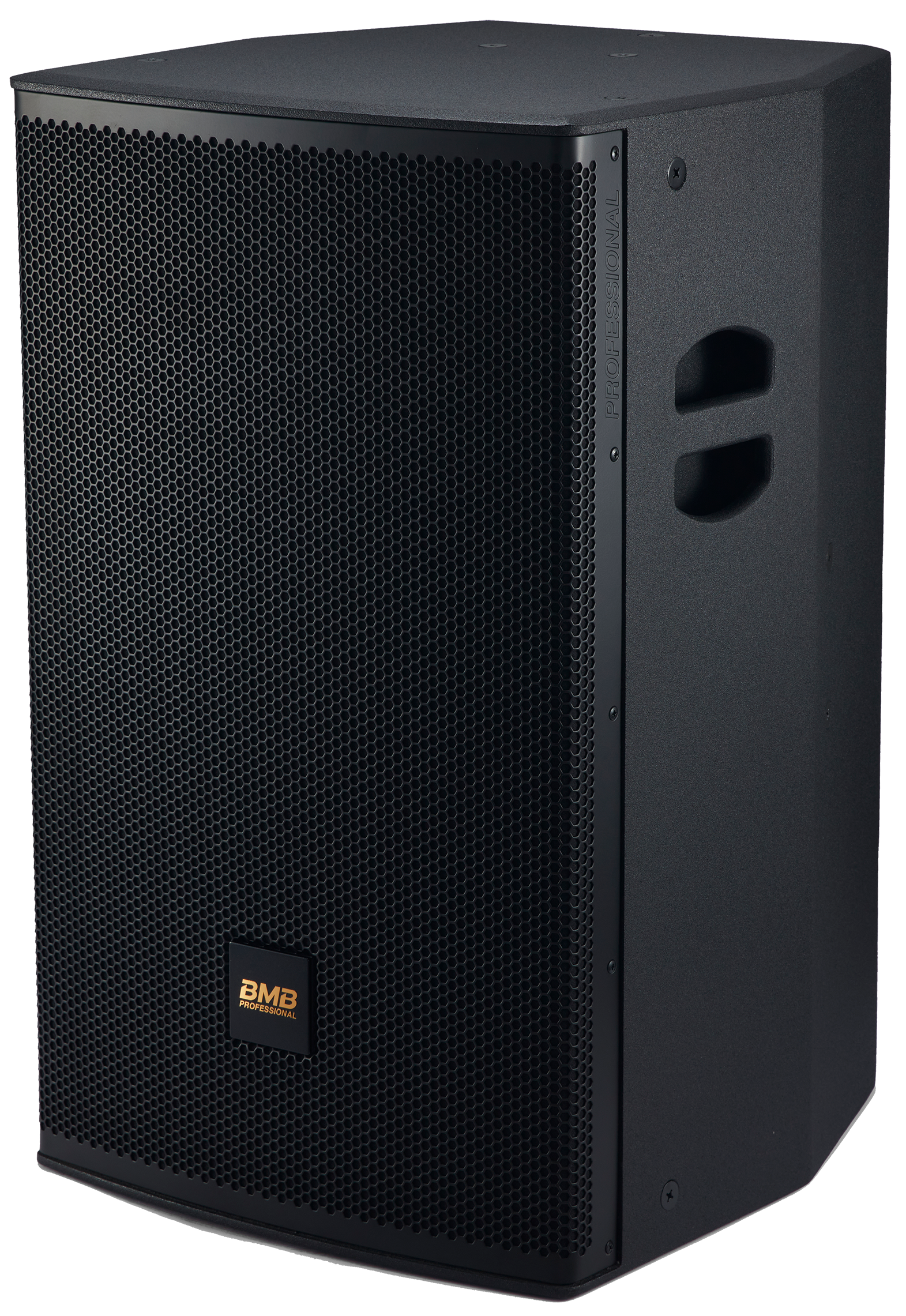

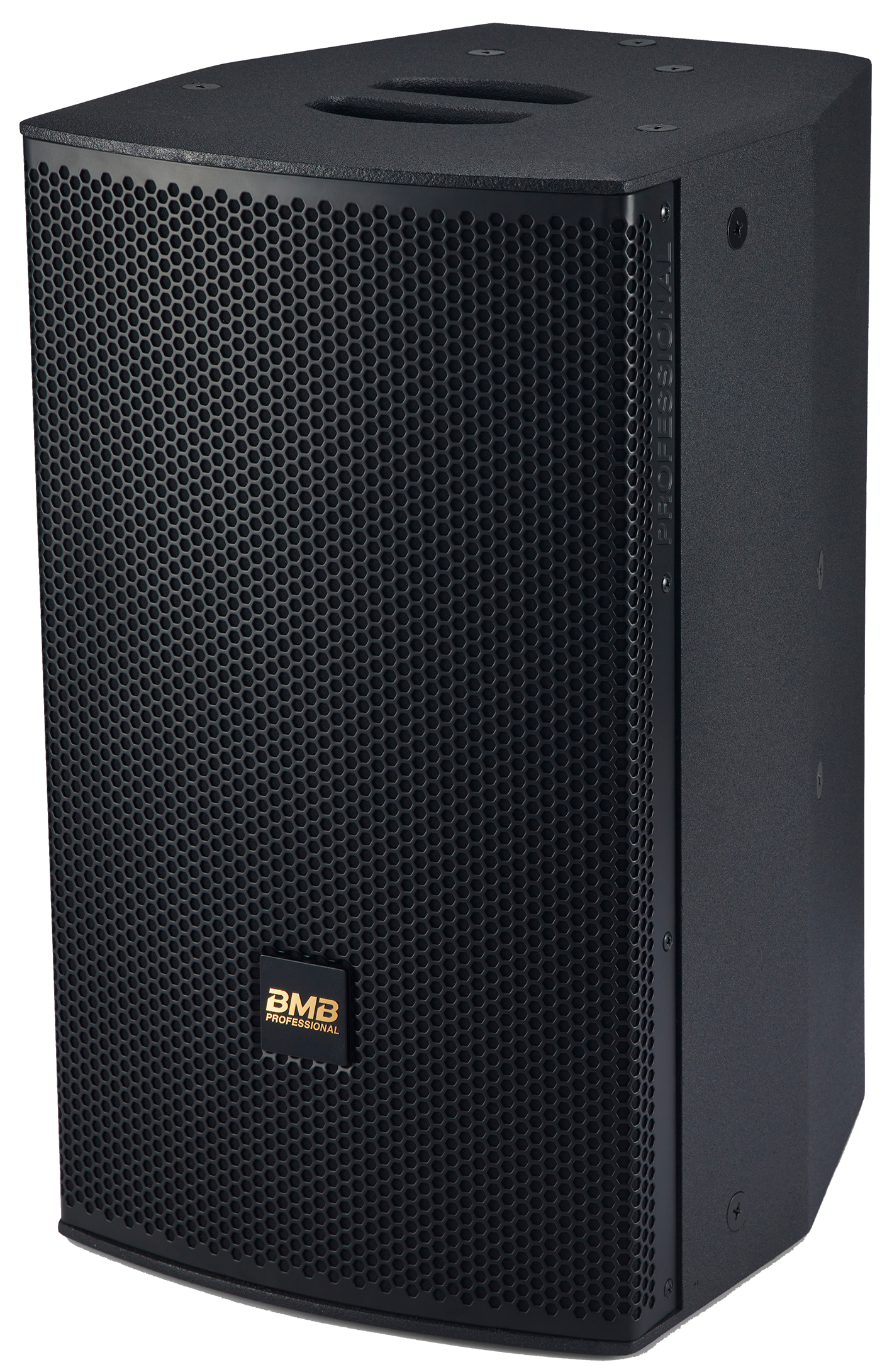

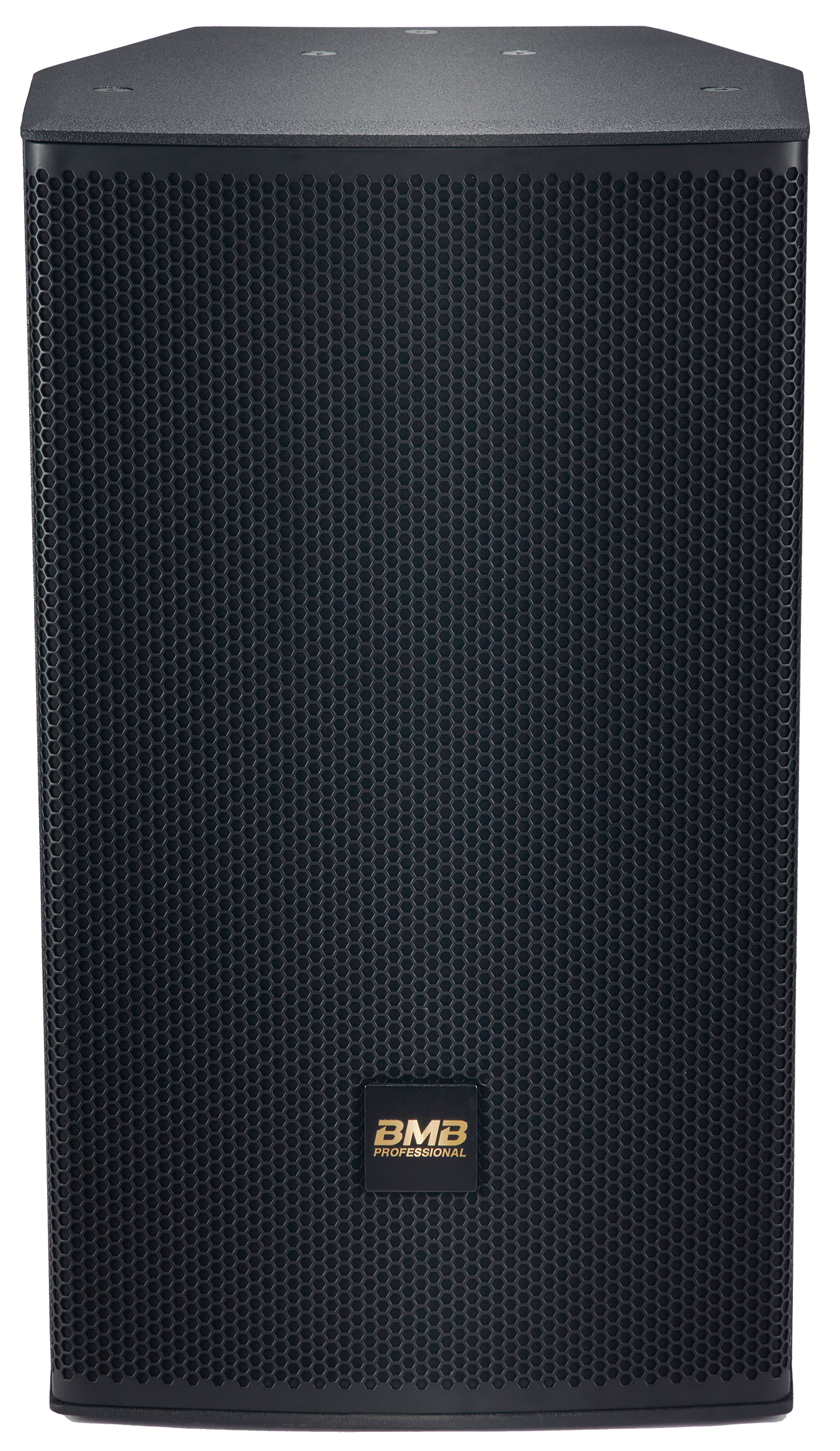

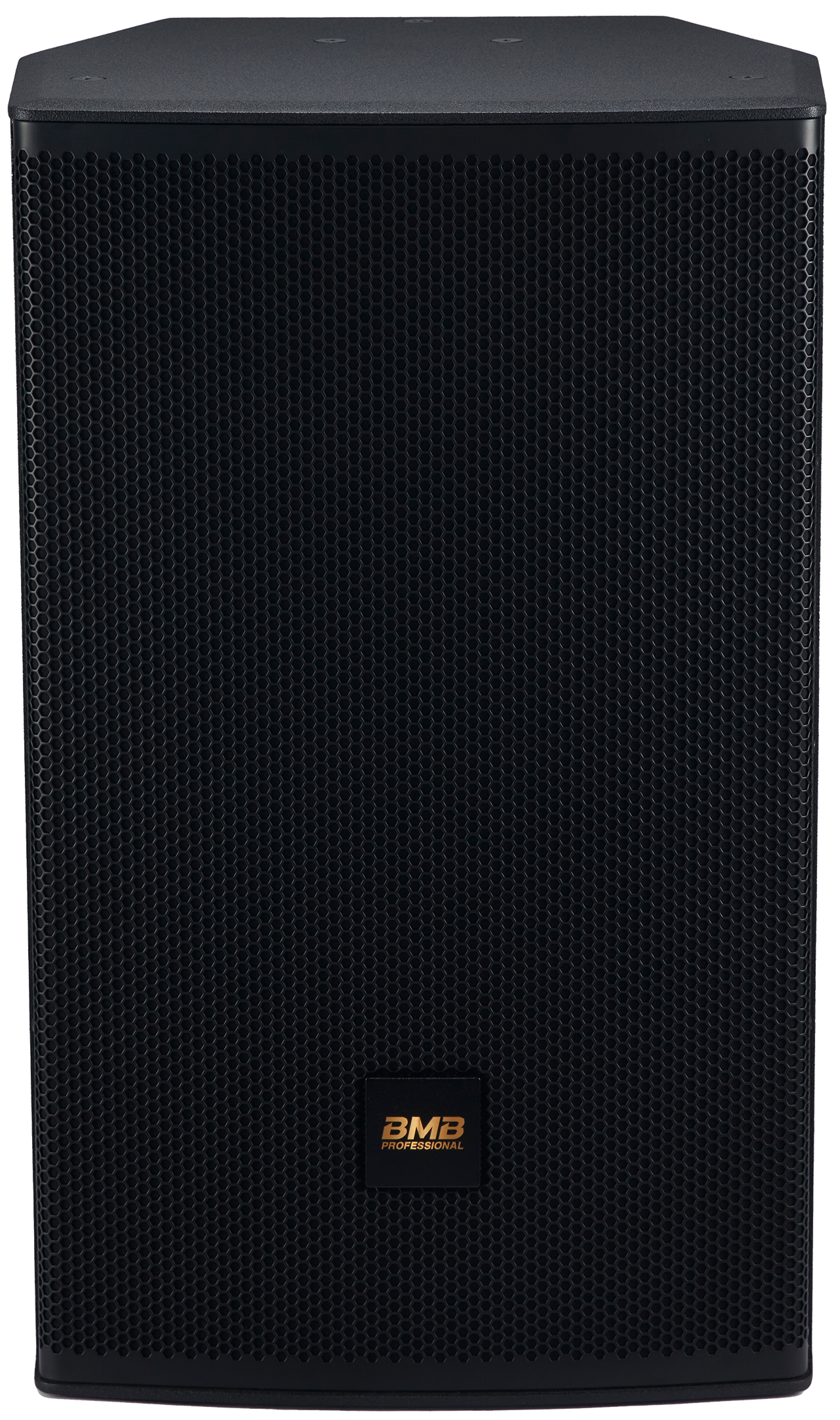

PMS Series Professional Entertainment Speaker System
The dark horse of entertainment, blazing through parties with powerful impact.
Its stunning bass delivers rhythm straight to the heart.
The tweeter features a custom-designed high-frequency compression driver, with a diaphragm made from specially treated high-rigidity material.
Paired with a low-distortion fiberglass horn, offering a 90H × 90V dispersion angle, it minimizes sound coloration,
delivering delicate, transparent sound with clear and natural performance.
The precisely engineered crossover ensures smooth and natural transitions between high and low frequencies.
This series offers rich, full-bodied low frequencies, crystal-clear highs, and beautiful, expressive vocals — pleasing to the ear and ideal for singing.
[High-performance bass and treble unit]
Imported high-performance bass unit, the bass is thick and full, shocking and powerful.
The treble adopts a customized treble compression unit, and the sound membrane is selected from specially treated high-hardness materials,
Combined with low-distortion fiberglass horn, 90H×90V diffusion angle, reduce sound coloration,
The sound is delicate and transparent, and the sound performance is clear and natural.
[Precisely designed frequency division]
Combining the characteristics of high and low frequency units, high standard and low distortion components are adopted.
The connection between high and low frequencies is smooth and natural.
The overall performance of the series of products is rich and full in low frequency, transparent in high frequency, beautiful in vocals, and pleasant to listen to and sing.

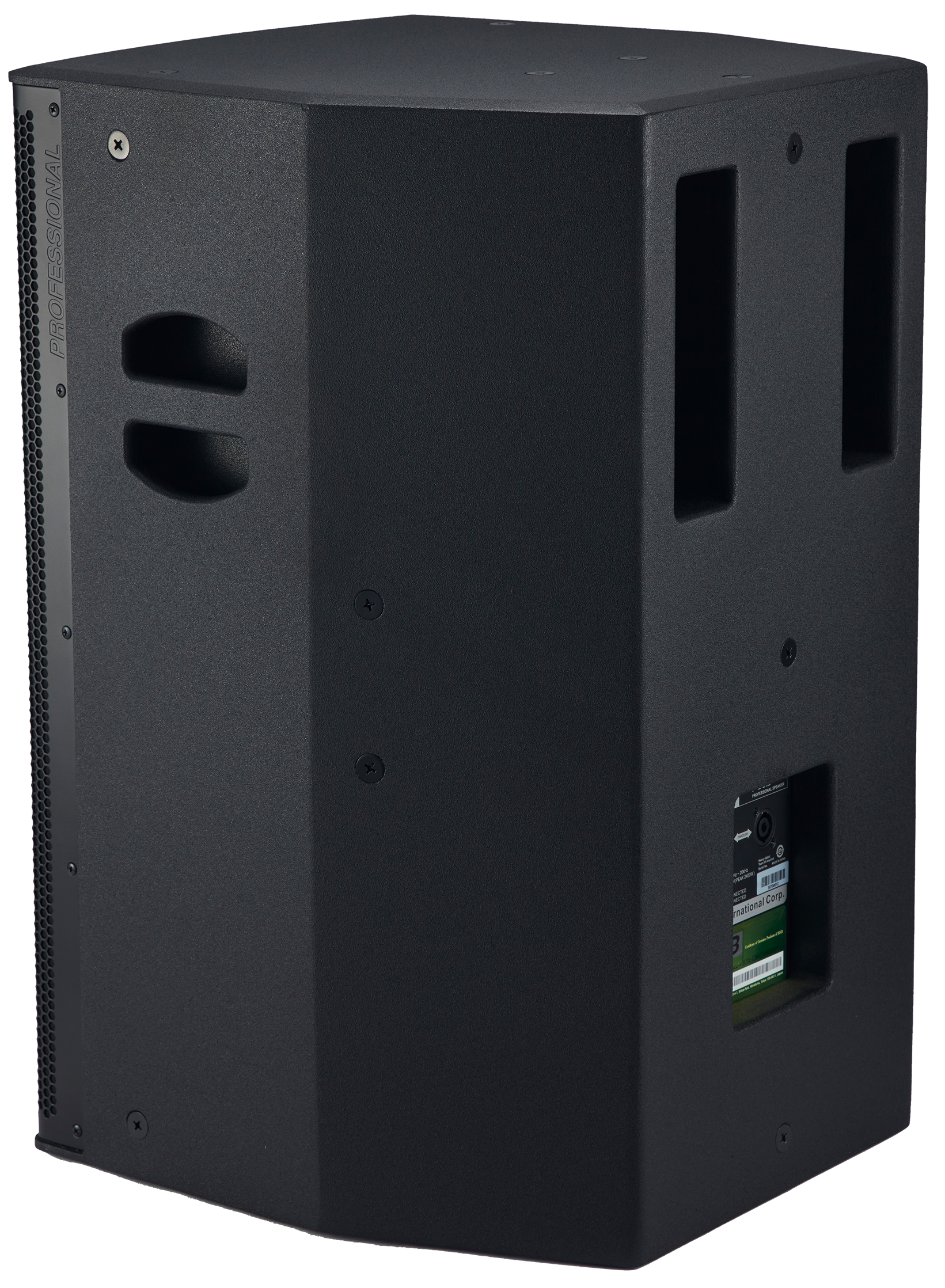

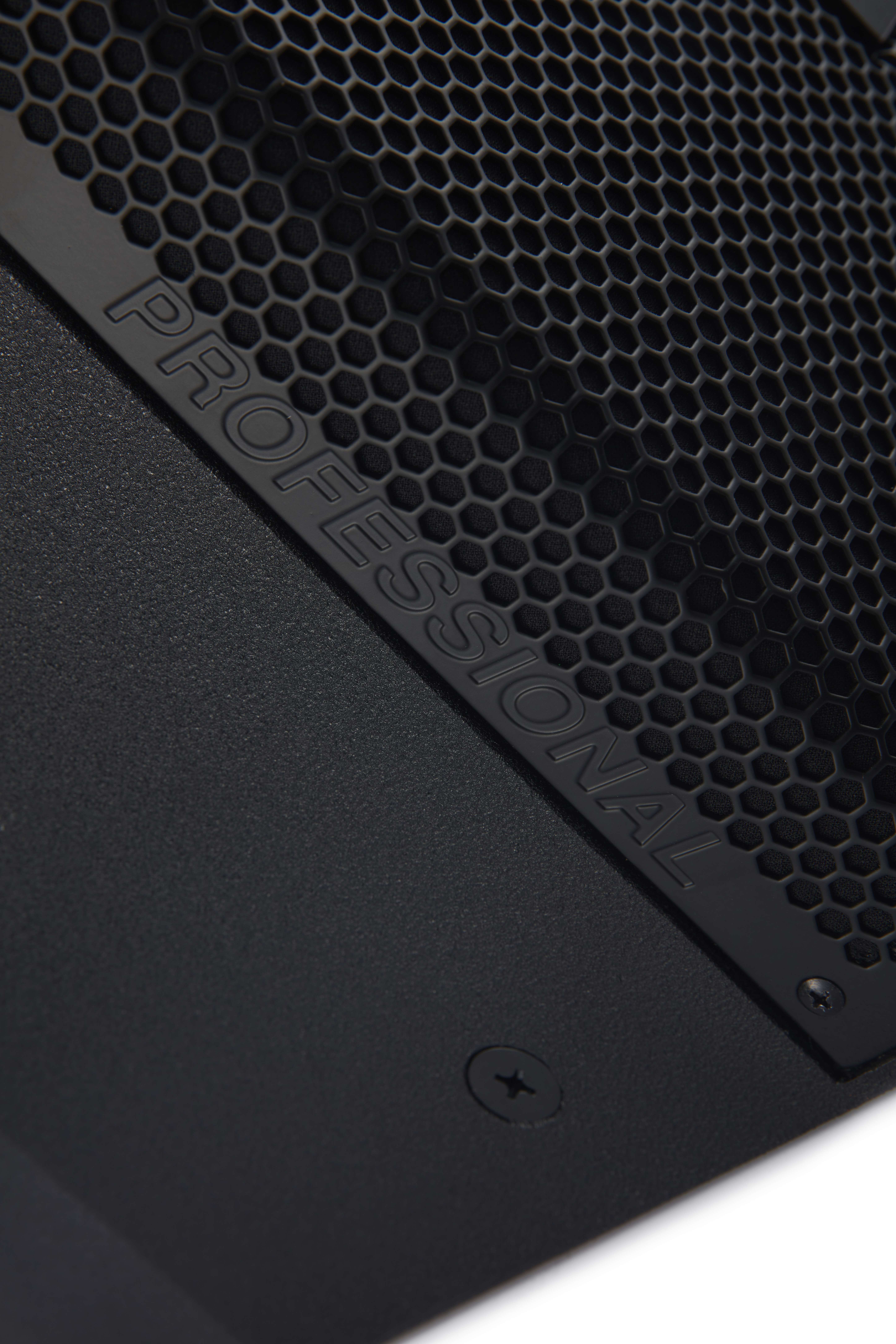

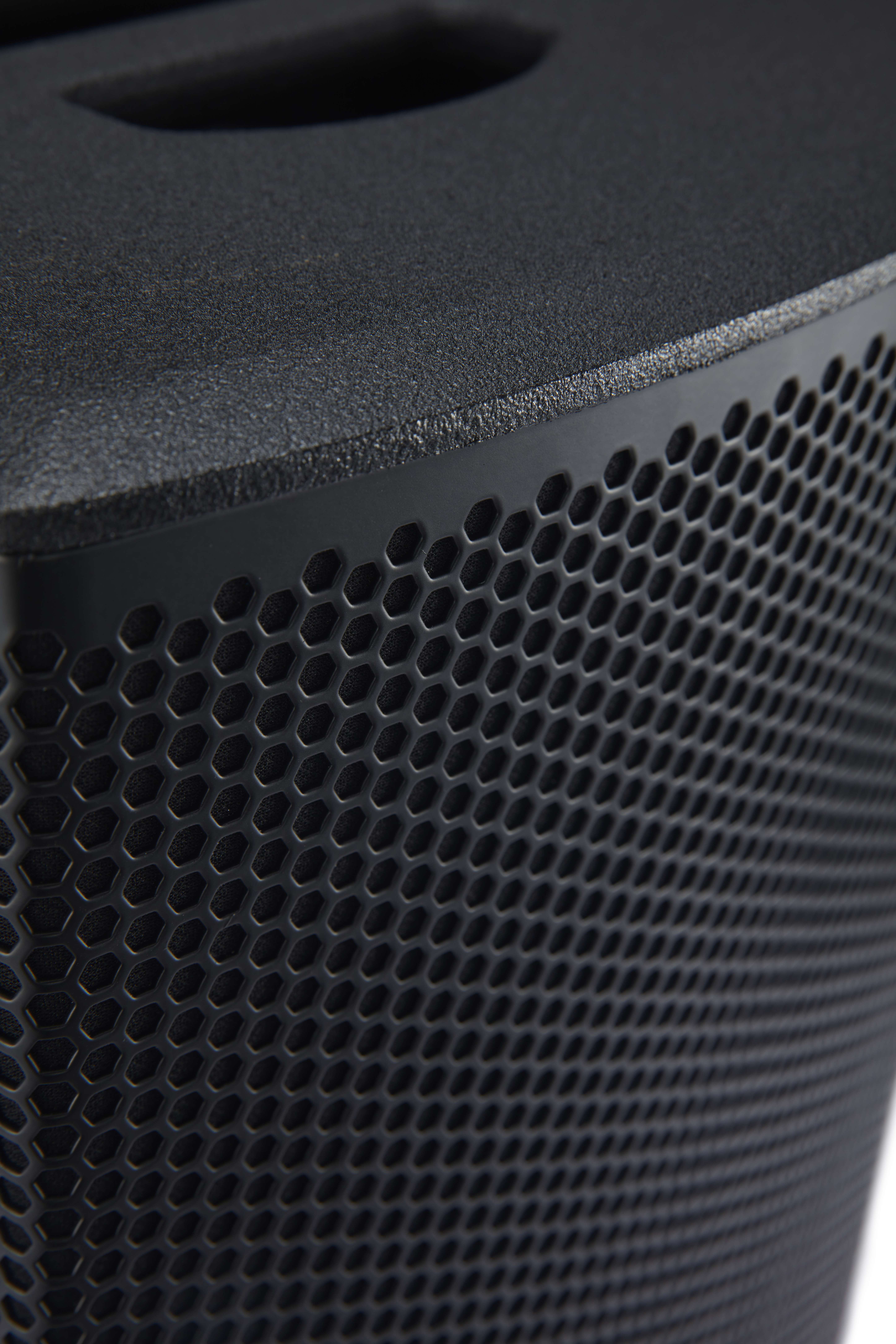

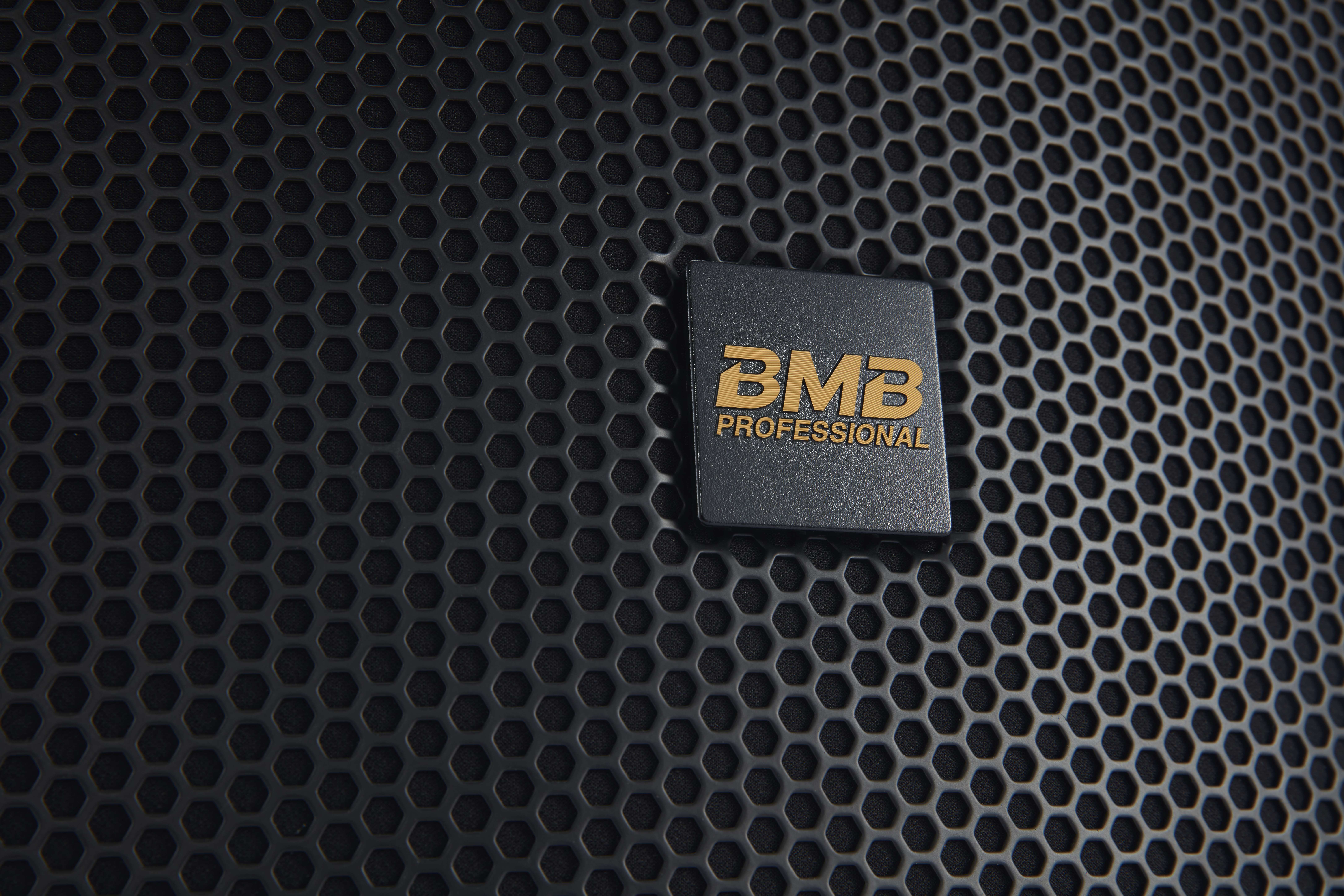

[With acoustic properties and exquisite appearance]
High-strength structural design with complementary concave and convex
Box size repeatedly optimized and debugged
| PMS-15 [15"] | |
|---|---|
| System Type | Two-Way loudspeaker, bass reflex |
| Frequency Range (-10dB) *1 |
56Hz～20kHz |
| Frequency Response (±3dB) *1 |
95Hz～20kHz |
| Sound Pressure Level *2 |
97dB |
| Impedance | 8Ω |
| Max Sound Pressure Level *3 |
125dB(Peak 131dB) |
| Power Capacity | Continuous 600W, Program 1200W, Peak 2400W |
| Dimensions | (W)443mm×(H)700mm×(D)463mm (17.4"×27.6"×18.2") |
| Shipping Dimensions |
(W)550mm×(H)825mm×(D)570mm (21.7"×32.5"×22.4") |
| Net Weight | 33.5kg(73.7lbs) |
| Shipping Weight | 39.3kg(86.6lbs) |

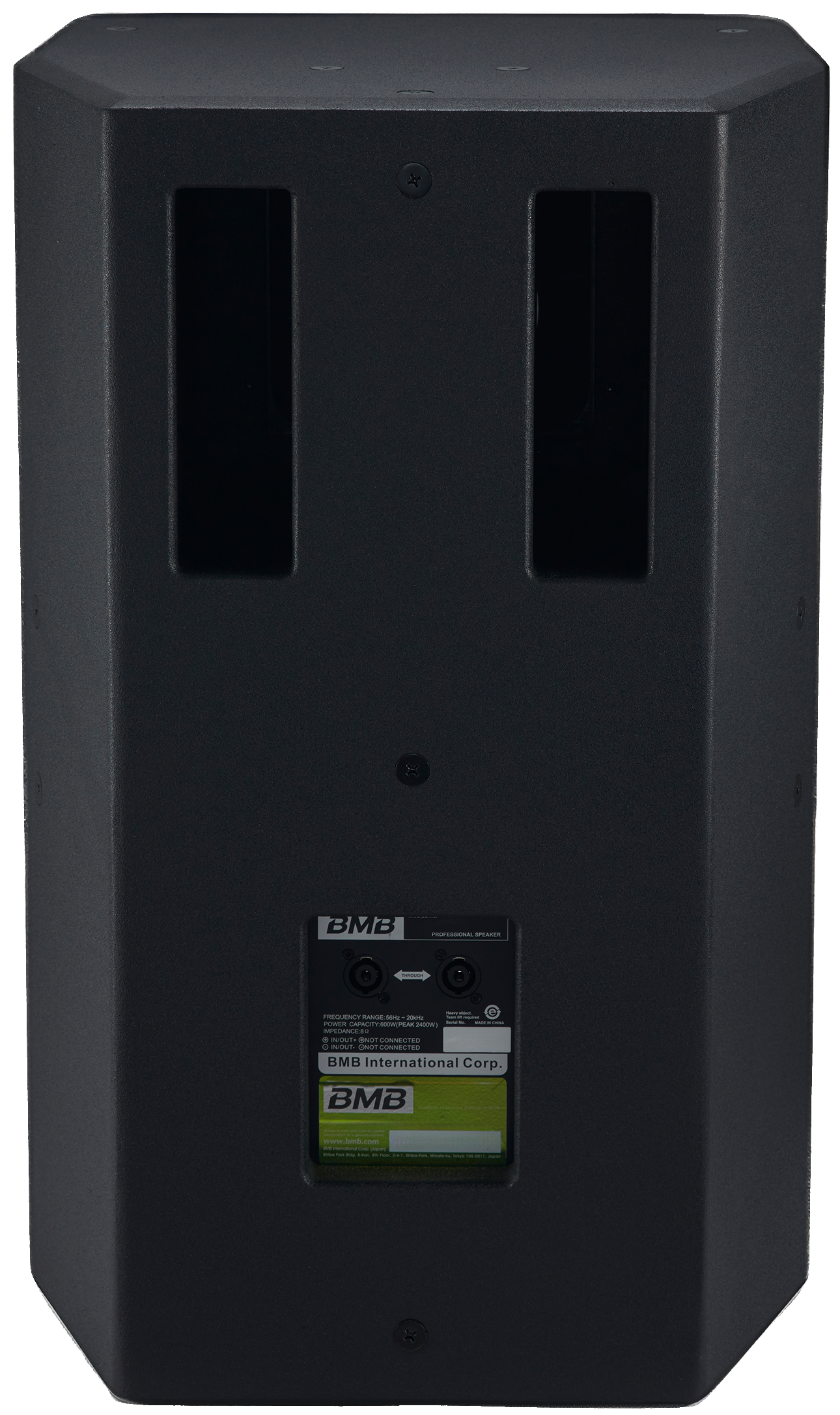

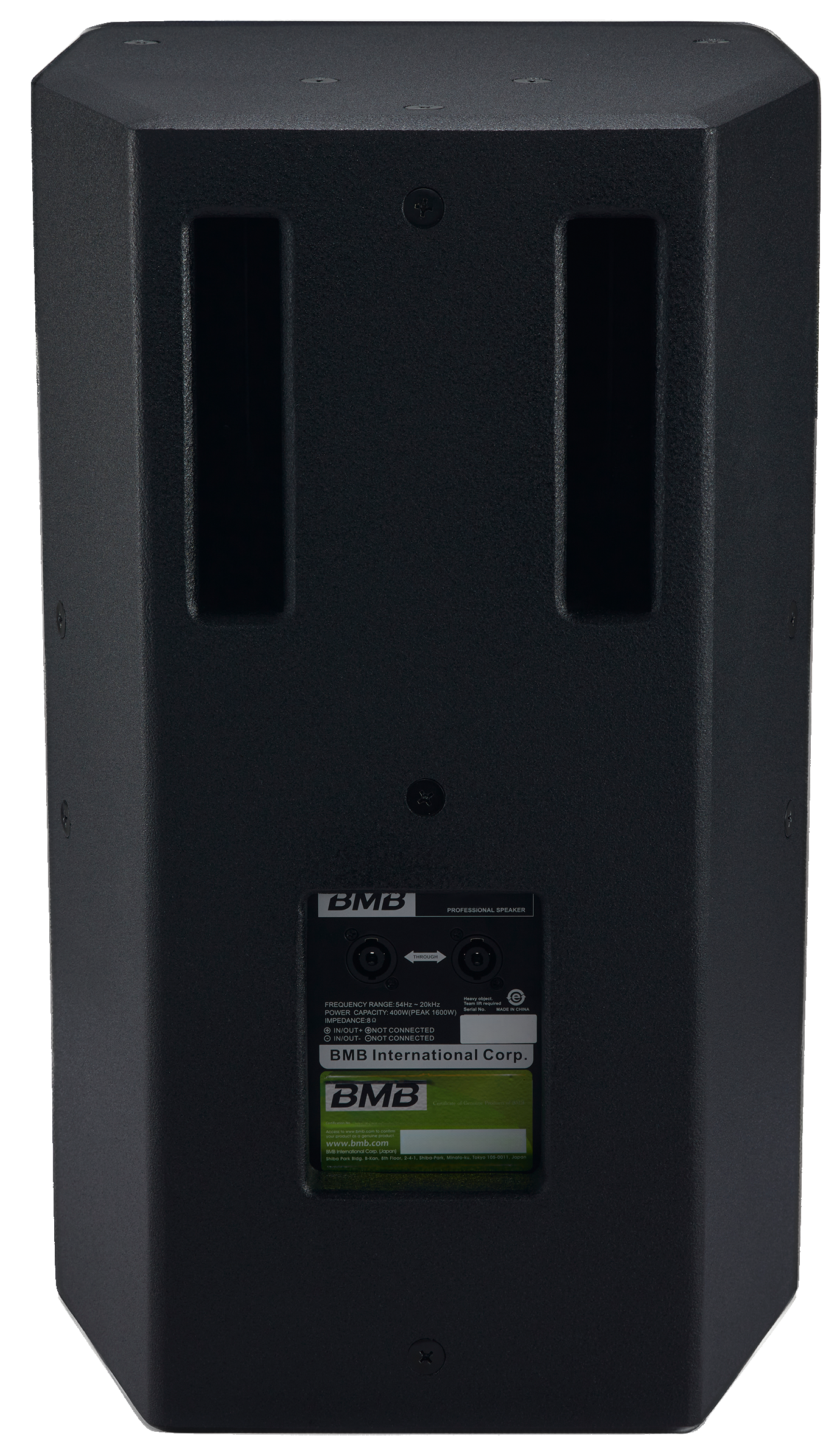

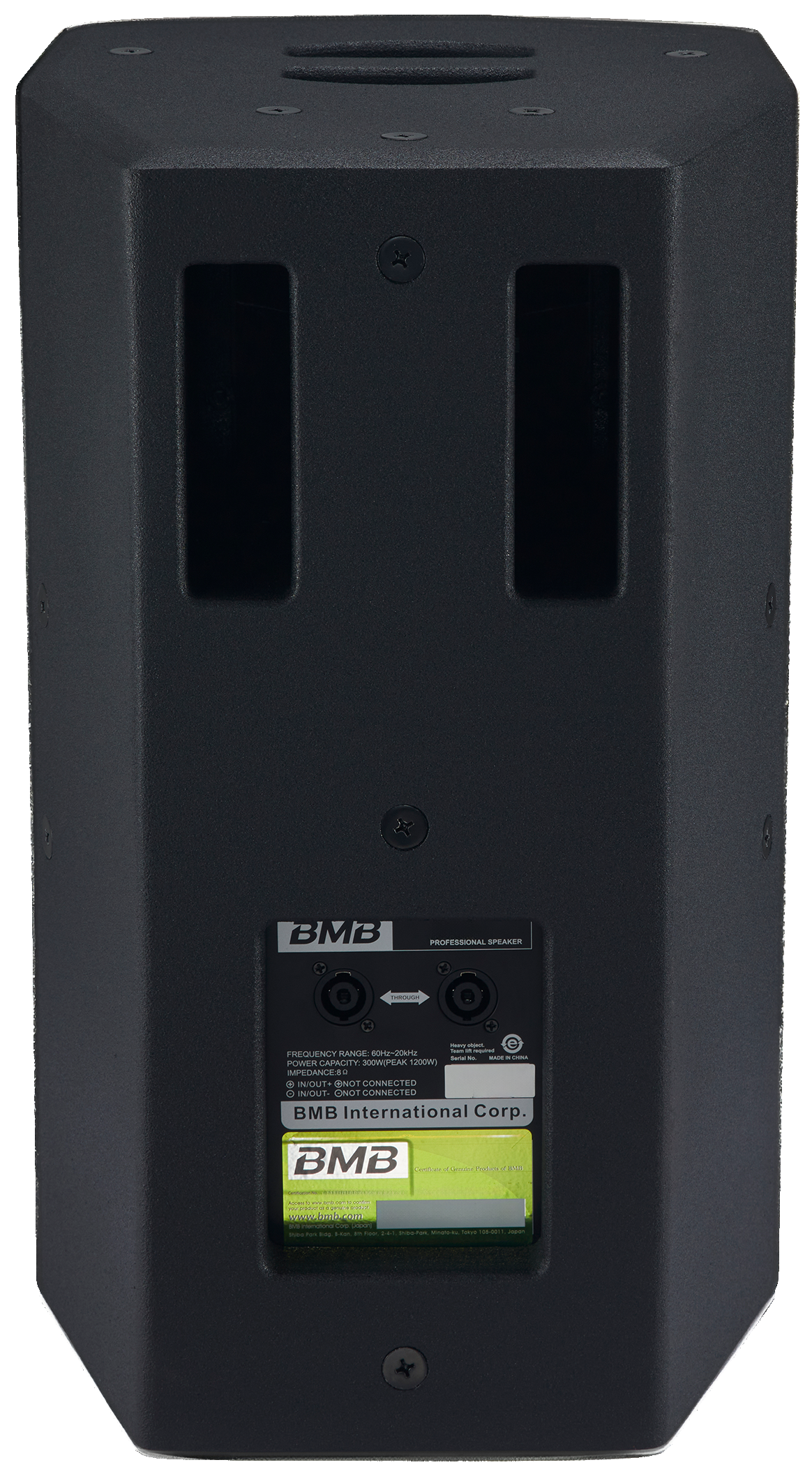

| Input Connectors | Speaker Connector(4P)×2 |
| Pole Mount Cap | Φ36mm(1.4"), Depth 75mm(3.0") |
| Speaker unit | LF Unit:390mm(15.4") Cone, 100mm(3.9") Voice Coil×1 HF Unit:37mm(1.5") Throat, 75mm(3.0")Voice Coil×1 |
| Enclosure Construction |
15mm(0.6") Plywood |
| Accessories | Owners manual Registration card |
|
*1 Full space (4π) conditions *2 1w1m on-axis, swept-sine in anechoic environment *3 Calculated |
|
| PMS-12 [12"] | ||
|---|---|---|
| System Type | Two-Way loudspeaker, bass reflex |
|
| Frequency Range (-10dB) *1 |
55Hz～20kHz | |
| Frequency Response (±3dB) *1 |
85Hz～20kHz | |
| Sound Pressure Level *2 |
95dB | |
| Impedance | 8Ω | |
| Max Sound Pressure Level *3 |
121dB(Peak 127dB) | |
| Power Capacity | Continuous 400W, Program 800W, Peak 1600W |
|
| Dimensions | (W)378mm×(H)625mm×(D)410mm (14.8"×24.6"×16.1") |
|
| Shipping Dimensions |
(W)480mm×(H)735mm×(D)510mm (18.8"×28.9"×20.0") |
|
| Net Weight | 26.6kg(58.6lbs) | |
| Shipping Weight | 33.0kg(72.8lbs) | |
| Input Connectors | Speaker Connector(4P)×2 | |
| Pole Mount Cap | Φ36mm(1.4"), Depth 75mm(3.0") |
|
| Speaker unit | LF Unit:300mm(12.0") Cone, 75mm(3.0") Voice Coil×1 HF Unit:25mm(1.0") Throat, 44.4mm(1.7") Voice Coil×1 |
|
| Enclosure Construction |
15mm(0.6") Plywood | |
| Accessories | Owners manual Registration card |
|
|
*1 Full space (4π) conditions *2 1w1m on-axis, swept-sine in anechoic environment *3 Calculated |
||

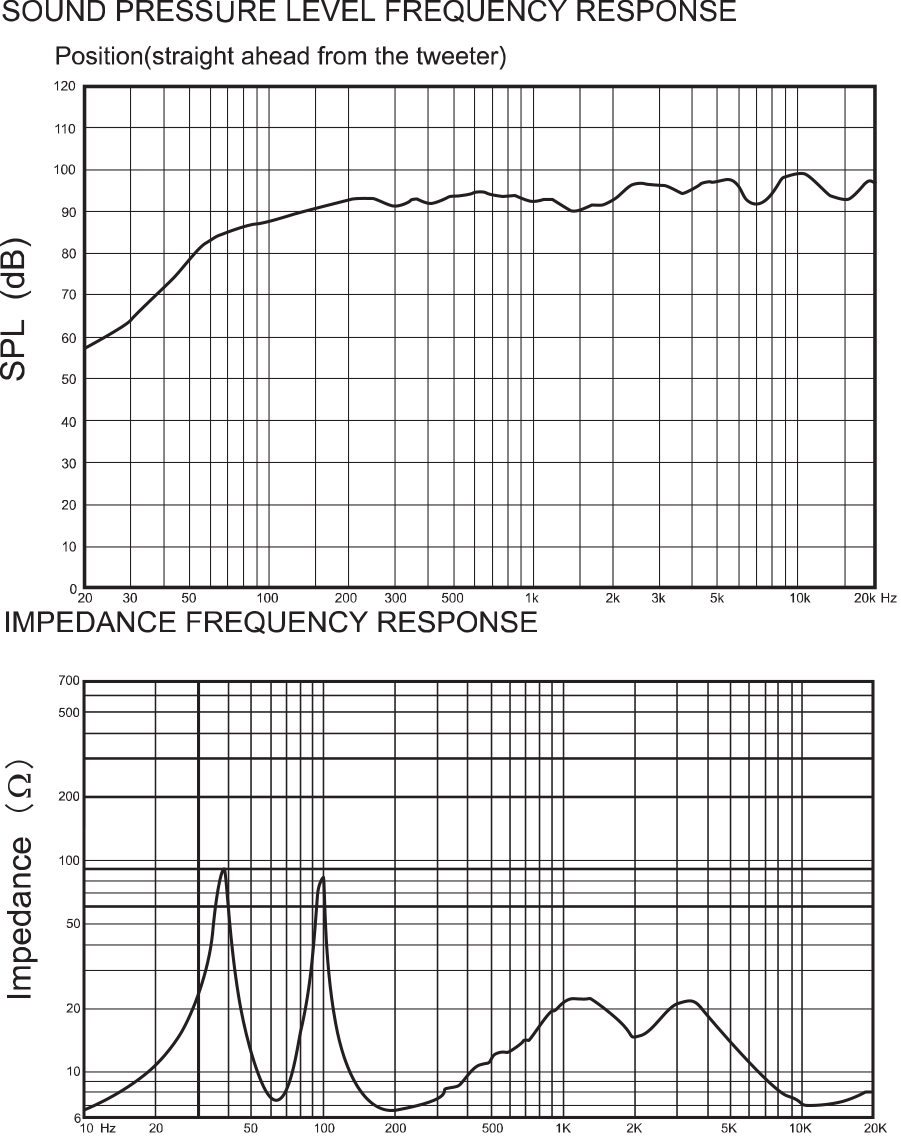

| PMS-10 | ||
|---|---|---|
| System Type | Two-Way loudspeaker, bass reflex |
|
| Frequency Range (-10dB) *1 |
57Hz～20kHz | |
| Frequency Response (±3dB) *1 |
95Hz～20kHz | |
| Sound Pressure Level *2 |
93dB | |
| Impedance | 8Ω | |
| Max Sound Pressure Level *3 |
118dB(Peak 124dB) | |
| Power Capacity | Continuous 300W, Program 600W, Peak 1200W |
|
| Dimensions | (W)319mm×(H)530mm×(D)357mm (12.5"×20.8"×14.0") |
|
| Shipping Dimensions |
(W)424mm×(H)635mm×(D)460mm (16.7"×25.0"×18.1") |
|
| Net Weight | 16.6kg(36.6lbs) | |
| Shipping Weight | 19.5kg(43.0lbs) | |
| Input Connectors | Speaker Connector(4P)×2 | |
| Pole Mount Cap | Φ36mm(1.4"), Depth 75mm(3.0") |
|
| Speaker unit | LF Unit:250mm(10.0") Cone, 65mm(2.6") Voice Coil×1 HF Unit:25mm(1.0") Throat, 34.4(1.3")mm Voice Coil× 1 |
|
| Enclosure Construction |
15mm(0.6") Plywood | |
| Accessories | Owners manual Registration card |
|
|
*1 Full space (4π) conditions *2 1w1m on-axis, swept-sine in anechoic environment *3 Calculated | ||
