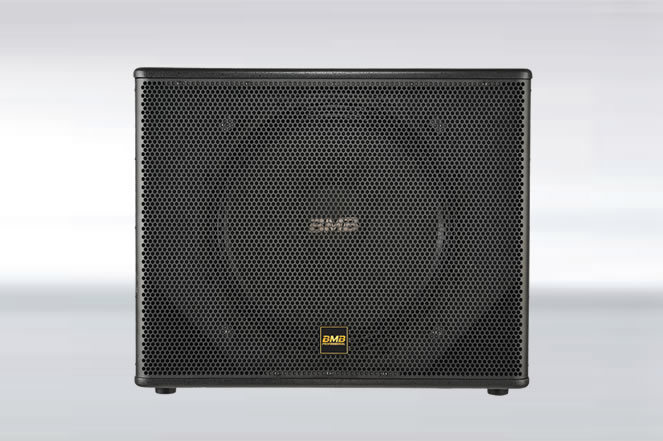

CSW Series

Make your singing more comfortable and enjoy your beat.

A subwoofer for karaoke developed by karaoke maker BMB that pursues comfortable singing.
By adopting a triangular bass reflex hole, you can make a speedy beat even though it is a bass reflex type.
In addition, the height of the main body can be lowered, resulting in a compact housing.

Selling
point

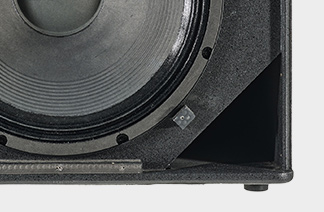

Triangle Bass Reflex

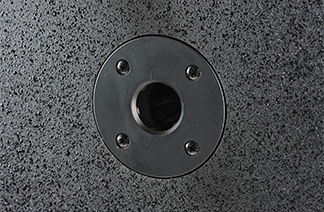

Pole Mount
Φ36mm(1.4"), Depth 96mm(3.8")

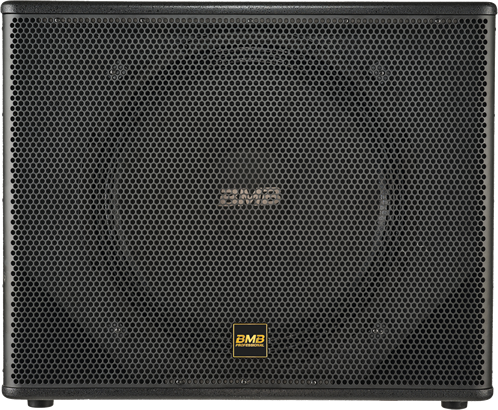

CSW-118

CSW-118 [18"]
System Type 1 Way 1 Speaker Bass Reflex
Frequency
Range
(-10dB) *1		 40Hz～2.5kHz
Frequency
Response
(±3dB) *1		 50Hz～1.8kHz
Sound
Pressure Level *2		 95dB
Impedance 8Ω
Max Sound
Pressure Level *3		 123dB(Peak 129dB)
Power Capacity Continuous 600W,
Program 1200W,
Peak 2400W
Dimensions
(H×W×D)		 550mm×661mm×519mm
(21.6"×26.0"×20.4")
Shipping
Dimensions
(H×W×D)		 692mm×809mm×666mm
(27.2"×31.9"×26.2")
Net Weight 31.1kg(68.6lbs)
Shipping Weight 39.6kg(87.3lbs)
Input Connectors Speaker Connector
(4P)×2
Pole Mount Cap Φ36mm(1.4"),
Depth 96mm(3.8")
LF Driver 460mm(18.1") Cone,
75mm(3.0") Voice Coil×1
Enclosure
Construction		 18mm(0.7") Plywood
*1 Full space (4π) conditions
*2 1w1m on-axis, swept-sine in anechoic environment
*3 Calculated

Catalog Owner's Manual

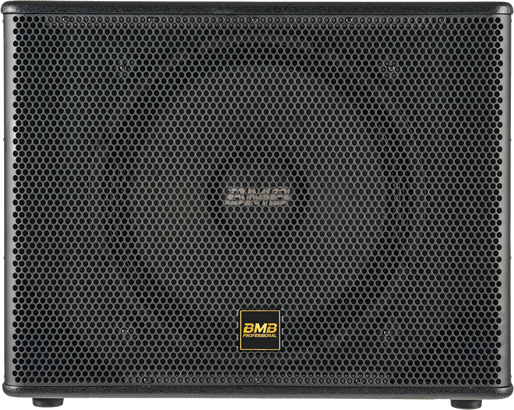

CSW-115

CSW-115 [15"]
System Type 1 Way 1 Speaker Bass Reflex

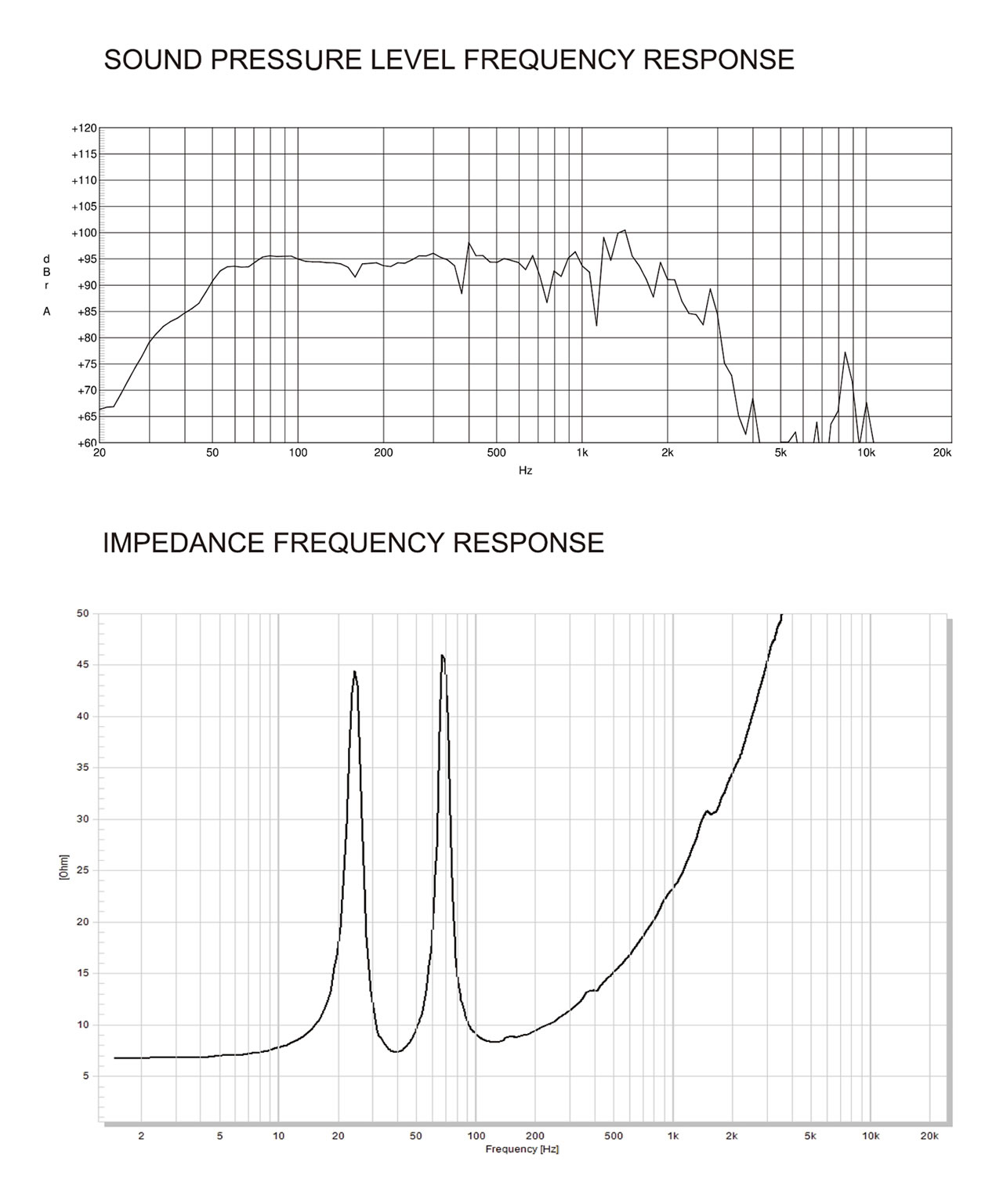

Frequency
Range
(-10dB) *1		 45Hz～3.1kHz
Frequency
Response
(±3dB) *1		 50Hz～3.0kHz
Sound
Pressure Level *2		 93dB
Impedance 8Ω
Max Sound
Pressure Level *3		 120dB(Peak 126dB)
Power Capacity Continuous 500W,
Program 1000W,
Peak 2000W
Dimensions
(H×W×D)		 465mm×580mm×488mm
(18.3"×22.8"×19.2")
Shipping
Dimensions
(H×W×D)		 597mm×706mm×615mm
(23.5"×27.8"×24.2")
Net Weight 24.0kg(52.9lbs)
Shipping Weight 30.6kg(67.5lbs)

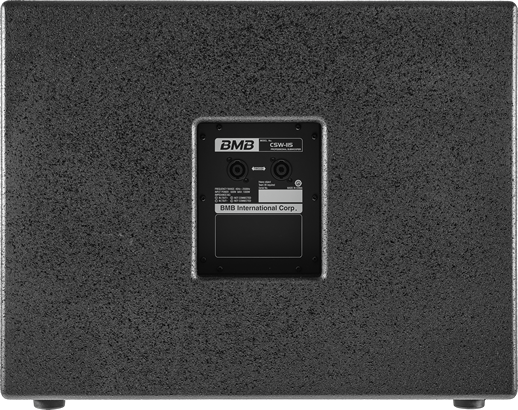

Input Connectors Speaker Connector
(4P)×2
Pole Mount Cap Φ36mm(1.4"),
Depth 96mm(3.8")
LF Driver 380mm(15.0") Cone,
75mm(3.0") Voice Coil×1
Enclosure
Construction		 15mm(0.6") Plywood
*1 Full space (4π) conditions
*2 1w1m on-axis, swept-sine in anechoic environment
*3 Calculated

Catalog Owner's Manual
