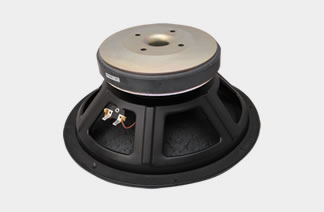

The Woofer
Selected woofer unit for stable delivery of luxurious sound

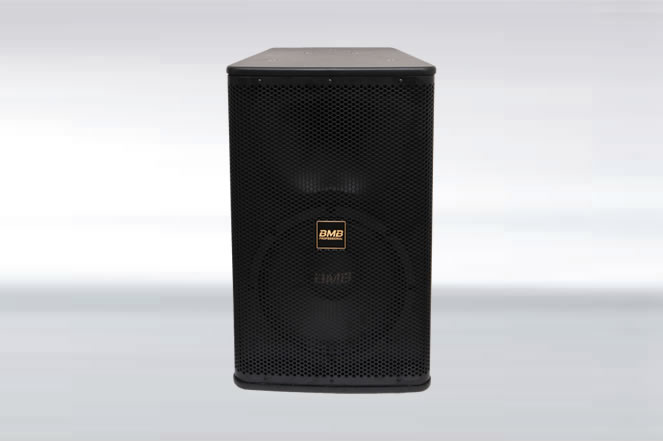

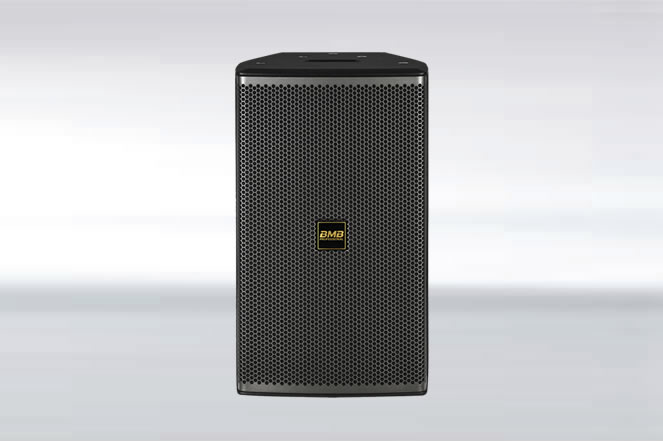

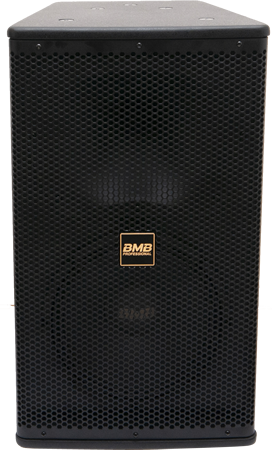

CSS-8000 Series
The flagship model of BMB Professional Series
- Home
- Product Info
- Professional Category
- CSS Series
BMB's traditional paper cone manufacturing process is a rigorous selection of high-strength textile materials.
Compression driver uses "Neodymium magnet", it will make clear powerful high-sound.
High-quality parts carefully selected for the network are used to achieve high stability and excellent durability.
Selling
point
- The flagship model of BMB Professional Series.
- Using high quality material for each parts.
- Recommend to install for luxury demand.
The network
Each parts uses high quality material, it is different from other model.

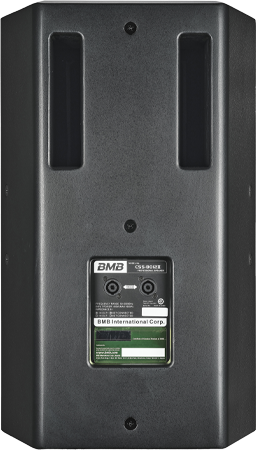

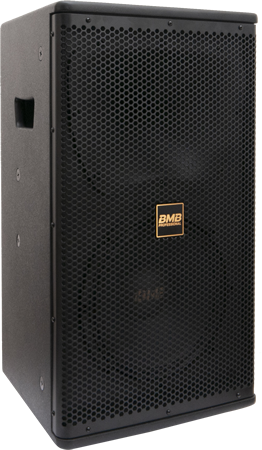

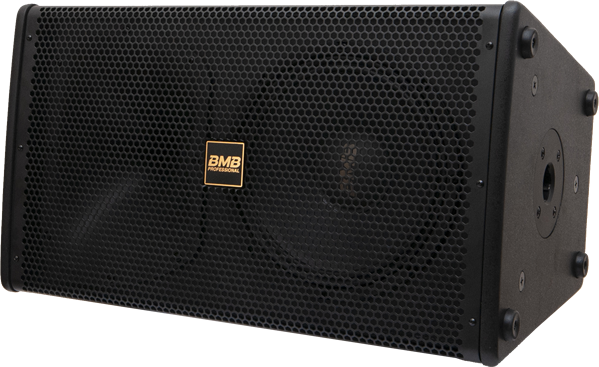

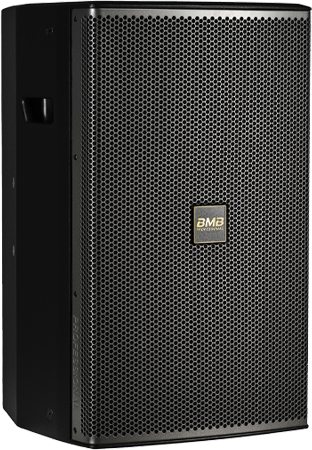

CSS-8012Ⅱ
| CSS-8012Ⅱ [12"] | |
|---|---|
| System | 2 Ways 2 Speakers |
| Woofer Unit | 300mm(12inch) Paper Cone Type×1unit with 75mm(2.95inch) Coil×1unit |
| Tweeter Unit | 26mm Throat,44.4mm Coil Diaphragm Assembly Type×1unit |

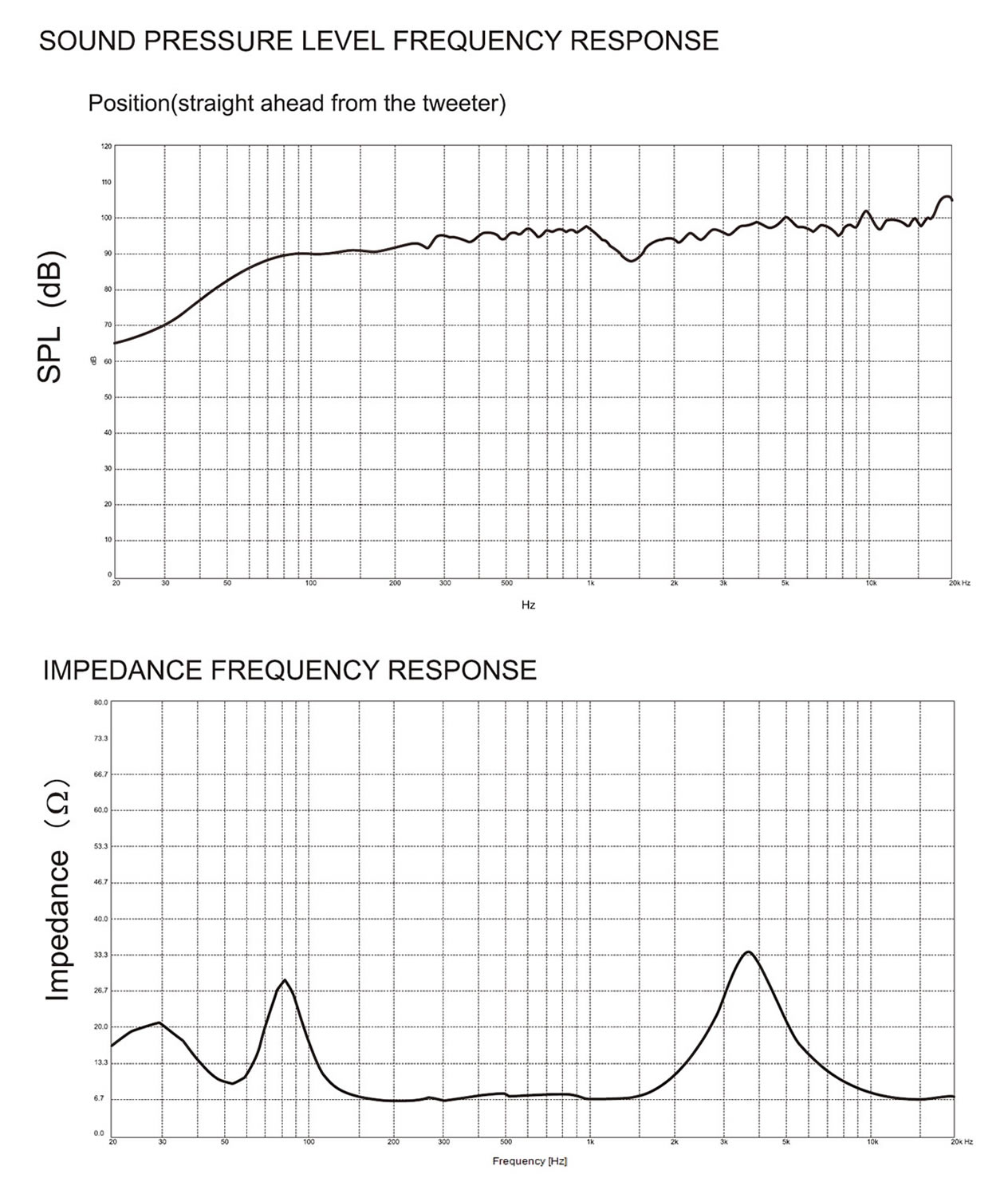

| Freq. Response |
50Hz～20.000Hz(±3dB) |
| Sensitivity | 98dB/W/m |
| Max SPL Peak |
133dB/m |
| Max SPL Continuous |
127dB/m |
| Max Input Power |
1600W |
| Rating Input Power |
400W(Public Addresses speaker type) |
| Recommended Amplifier |
500W(DAD-500) |
| HF Protections | Poly Switch Circuit Breaker |
| Horizontal Coverage |
80° |
| Vertical Coverage |
50° |
| Connector | Speaker connector (4P)×2 |
| Impedance | 8Ω |
| Dimensions (mm) |
377.5(W)×620(H)×409(D) |
| Weight | 22.6kg per piece |
| Enclosure Material |
15mm Plywood construction |
| Grille | 5.5mm Custom Hexagon perforated steel grille |
| Finish | Paint Finish |
| Pole Mount | φ36mm bottom support base |

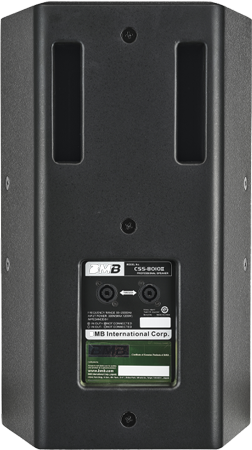

CSS-8010Ⅱ
| CSS-8010Ⅱ[10"] | |
|---|---|
| System | 2 Ways 2 Speakers |
| Woofer Unit | 250mm(10inch) Paper Cone Type×1unit with 63.5mm(2.3inch) Coil×1unit |
| Tweeter Unit | 26mm Throat, 34.4mm Coil Diaphragm Assembly Type×1unit |
| Freq. Response |
55Hz～20.000Hz(±3dB) |
| Sensitivity | 97dB/W/m |
| Max SPL Peak |
128dB/m |
| Max SPL Continuous |
124dB/m |
| Max Input Power |
1200W |
| Rating Input Power |
300W(Public Addresses speaker type) |
| Recommended Amplifier |
500W(DAD-500) |
| HF Protections | Poly Switch Circuit Breaker |
| Horizontal Coverage |
80° |
| Vertical Coverage |
50° |
| Connector | Speaker connector (4P)×2 |
| Impedance | 8Ω |
| Dimensions (mm) |
314(W)×520(H)×345(D) |
| Weight | 16.02kg per piece |
| Enclosure Material |
15mm Plywood construction |
| Grille | 5.5mm Custom Hexagon perforated steel grille |
| Finish | Paint Finish |
| Pole Mount | φ36mm bottom support base |

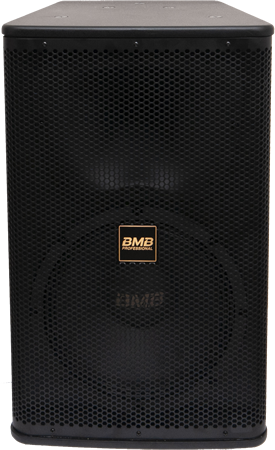

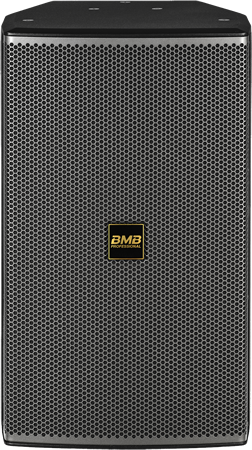

CSS-1200 Series
Entry level PA type speakers for match various scenes
It adapts "CELESTION" compression driver. We produce BMB sound quality suitable for CLUB and KARAOKE room.
Equipped with rubber foot, it can be installed not only hanging the speaker but also stationery installation.
Selling
point
- Entry level PA type speaker
- It can be used from KTV room to the hall with reliable sound quality.

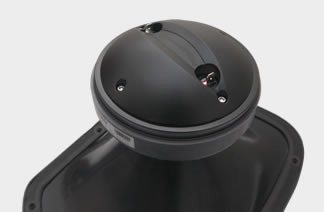

The Tweeter
High performance, reliable compression driver with ferrite magnet.
The Tweeter
CELESTION has a history of over 100 years in speaker unit design.
Natural, Clear high-frequency reproduction, A mini size compression driver.
The Woofer
Strong bass sound with a tough aluminum frame.

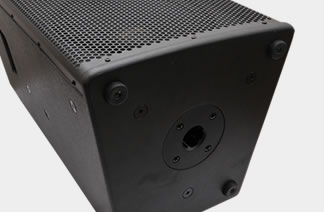

Rubber foot.
various installation methods are possible, Ceiling mount, stand, stationery installation.

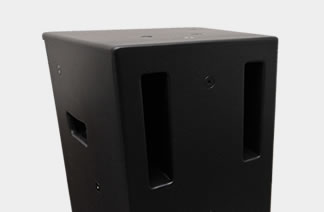

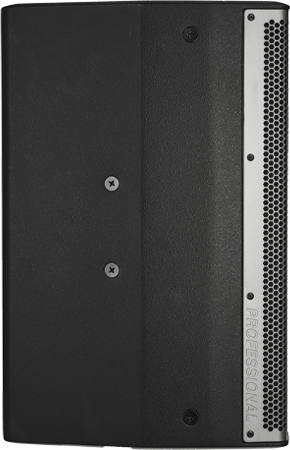

Rear bass reflex speaker

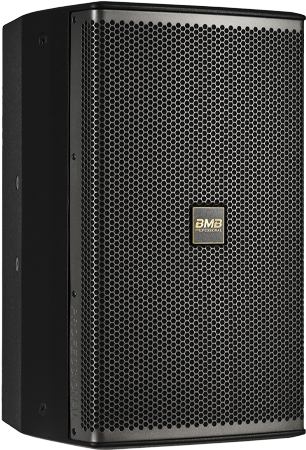

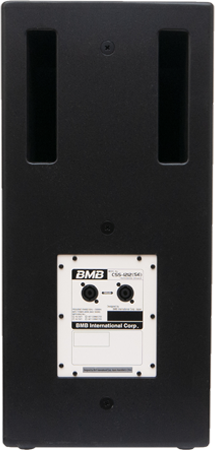

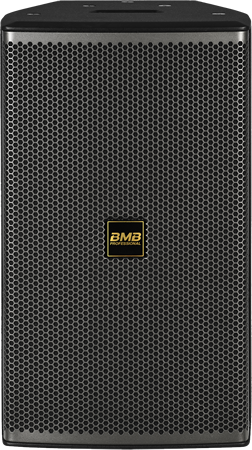

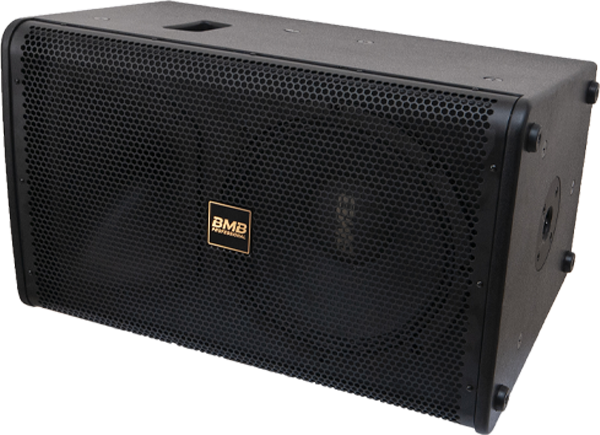

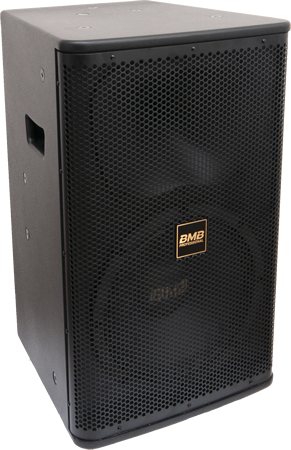

CSS-1212(SE)
| CSS-1212(SE) [12"] | |
|---|---|
| System | 2 Ways 2 Speakers |
| Woofer Unit | 300mm(12inch) Paper Cone Type, With 75mm(3.0inch) Coil×1unit |
| Tweeter Unit | 25mm Throat, 44.4mm Coil Diaphragm Assembly Type×1unit |

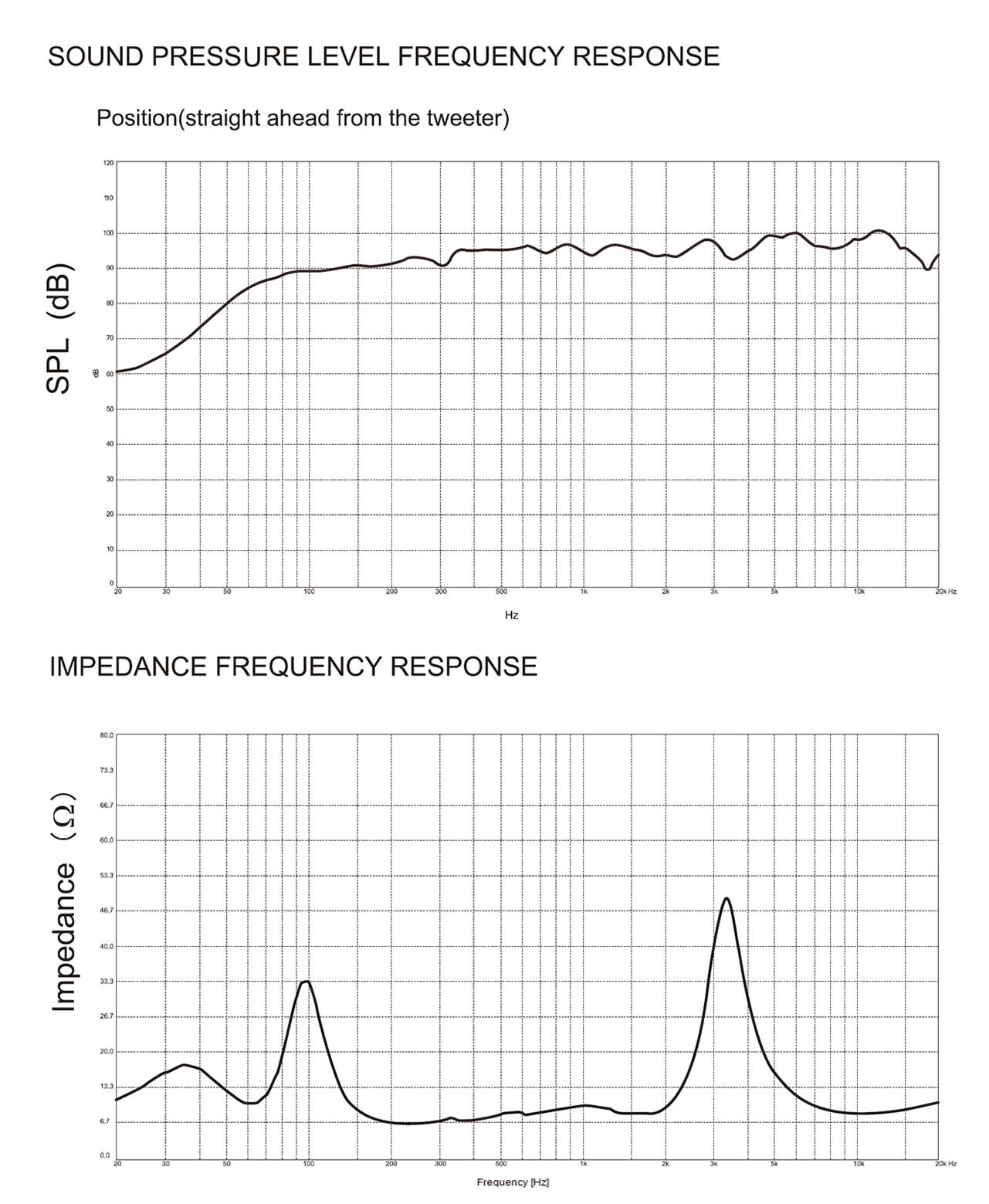

| Freq. Response |
50Hz～20.000Hz(±3dB) |
| Sensitivity | 98dB/W/m |
| Max SPL Peak |
133dB/m |
| Max SPL Continuous |
127dB/m |
| Max Input Power |
1600W |
| Rating Input Power |
400W (Public Addresses speaker type) |
| Recommended Amplifier |
500W (DAP-5000) |
| HF Protections | Poly Switch Circuit Breaker |
| Horizontal Coverage |
80° |
| Vertical Coverage |
60° |
| Connector | 2×SPK 4style |
| Impedance | 8Ω |
| Dimensions (mm) |
380(W)×625(H)×387(D) |
| Weight | 22.9kg per piece |
| Enclosure Material |
15mm Plywood construction |
| Grille | 6.0mm Custom Hexagon perforated steel grille |
| Finish | Litchi effect paint finish |
| Pole Mount | φ36mm bottom support base |

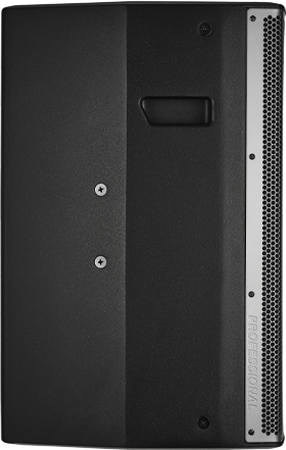

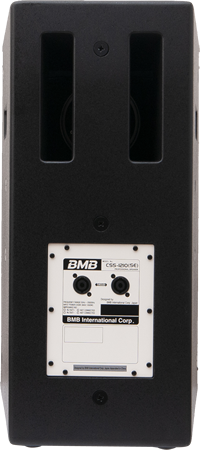

CSS-1210(SE)
| CSS-1210(SE) [10"] | |
|---|---|
| System | 2 Ways 2 Speakers |
| Woofer Unit | 250mm(10inch) Paper Cone Type With 65mm(2.6inch) Coil×1unit |
| Tweeter Unit | 25mm Throat, 44.4mm Coil Diaphragm Assembly Type×1unit |
| Freq. Response |
55Hz～20.000Hz(±3dB) |
| Sensitivity | 96dB/W/m |
| Max SPL Peak |
128dB/m |
| Max SPL Continuous |
124dB/m |
| Max Input Power |
1000W |
| Rating Input Power |
250W (Public Addresses speaker type) |
| Recommended Amplifier |
500W (DAP-5000) |
| HF Protections | Poly Switch Circuit Breaker |
| Horizontal Coverage |
80° |
| Vertical Coverage |
60° |
| Connector | 2×SPK 4style |
| Impedance | 8Ω |
| Dimensions (mm) |
333(W)×583(H)×325(D) |
| Weight | 18.0kg per piece |
| Enclosure Material |
15mm Plywood construction |
| Grille | 6.0mm Custom Hexagon perforated steel grille |
| Finish | Litchi effect paint finish |
| Pole Mount | φ36mm bottom support base |
