Double Bluetooth
DAR Series
High power Karaoke amplifier with useful new functions.
- Home
- Product Info
- Home Category
- DAR Series
350W x 2ch outputs, enough high power to meet commercial use.

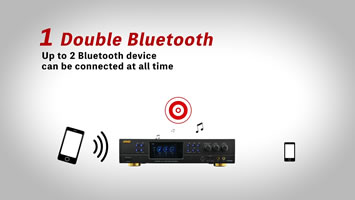

Double Bluetooth function: You can connect two smartphones and play song while switching smoothly.

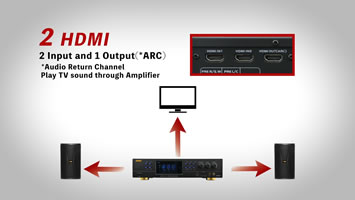

HDMI port 2in 1out(ARC): You can connect HDMI device such as Karaoke song machine, DVD Player, etc. If your TV has HDMI ARC function, TV sound can come into DAR-350H.
USB Play: Can conect USB memory, play song.

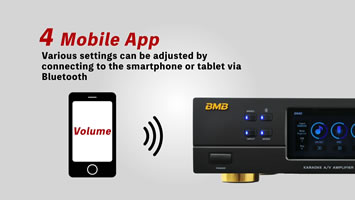

Mobile/PC app: Set up the parameter of DAR-350H by Mobile or PC app.
Selling
point
- 4 useful New functions (Double Bluetooth, HDMI, USB Play, Mobile app)
- Powerful 350W x 2ch, suitable for both of Commercial / Home use.
USB Play
HDMI (ARC available)
PC/Mobile App control

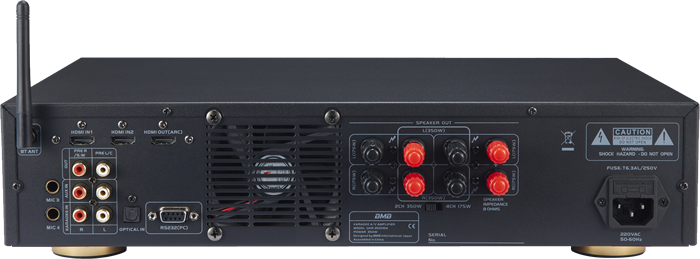

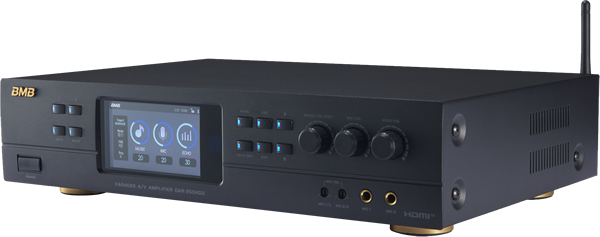

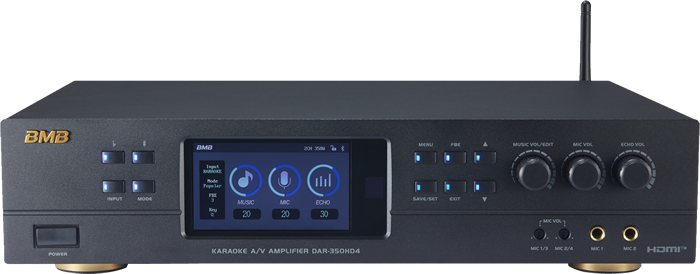

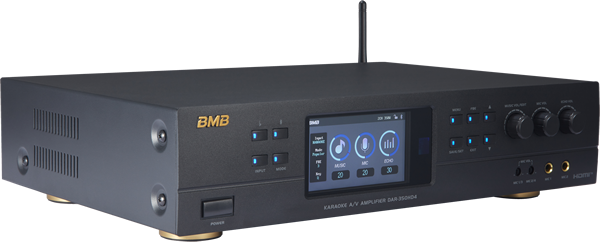

DAR-350HD4
| DAR-350HD4 | |
|---|---|
| Stereo mode | @8Ω 1kHz 2x350W / 4×175W |
| Sensitivity | @8Ω 1kHz 800mV / 560mV |
| Frequency Response | 20Hz-20kHz ±0.5dB |
| Total Harmonic Distortion | @8Ω 1kHz, MIC input 0.05% @8Ω 1kHz,AUX/KARAOKE input 0.05% |
| Signal to Noise Ratio | A-weighted,MIC input ≥85dB A-weiqhted, MIC mute AUX/KARAOKE input ≥96dB |
| Intermodulation distortion | @8Ω 60Hz-7kHz < 0.1% |
| Voltage gain | @8Ω 1kHz 36±1dB/34±1dB |
| Channel separation | @8Ω 1kHz ≥78dB |
| Input Impedance | @1kHz balance 20kΩ |
| AC power specifications | AC100V-130V(50/60Hz) 100V Model AC220V-240V(50/60Hz) 200V Model |
| Product dimensions(W*D*H) | 420mm x 290mm x 89mm |
| Packaging dimensions(W*D*H) | 561mm x 470mm x 175mm |
| Net weight | 10.5kg |
| Gross weight | 13kg |
Catalog
Owner's Manual
PC Editor
(DAR-HD SERIES)

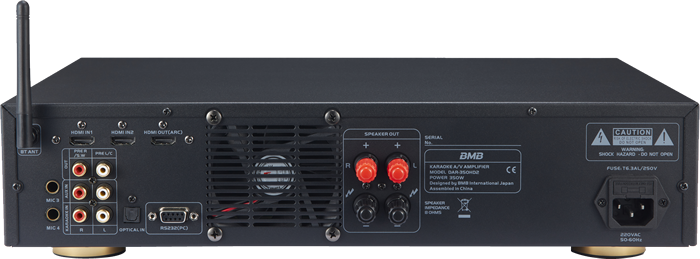

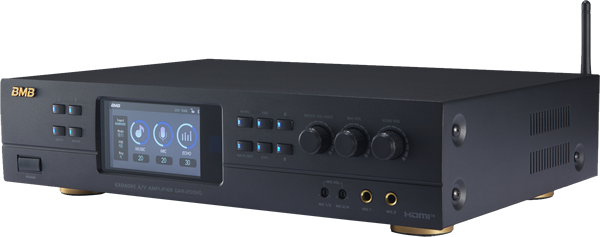

DAR-350HD2
| DAR-350HD2 | |
|---|---|
| Stereo mode | @8Ω 1kHz 2x350W |
| Sensitivity | @8Ω 1kHz 800mV |
| Frequency Response | 20Hz-20kHz ±0.5dB |
| Total Harmonic Distortion | @8Ω 1kHz, MIC input 0.05% @8Ω 1kHz,AUX/KARAOKE input 0.05% |
| Signal to Noise Ratio | A-weighted,MIC input ≥85dB A-weiqhted, MIC mute AUX/KARAOKE input ≥96dB |
| Intermodulation distortion | @8Ω 60Hz-7kHz < 0.1% |
| Voltage gain | @8Ω 1kHz 36±1dB |
| Channel separation | @8Ω 1kHz ≥78dB |
| Input Impedance | @1kHz balance 20kΩ |
| AC power specifications | AC100V-130V(50/60Hz) 100V Model AC220V-240V(50/60Hz) 200V Model |
| Product dimensions(W*D*H) | 420mm x 290mm x 89mm |
| Packaging dimensions(W*D*H) | 561mm x 470mm x 175mm |
| Net weight | 10.2kg |
| Gross weight | 12.7kg |
Catalog
Owner's Manual
PC Editor
(DAR-HD SERIES)

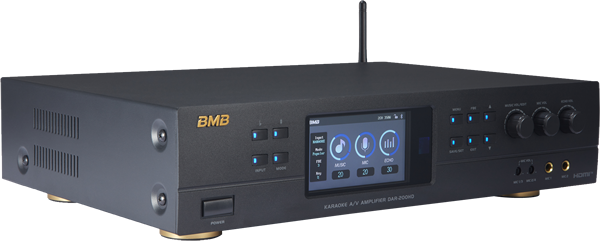

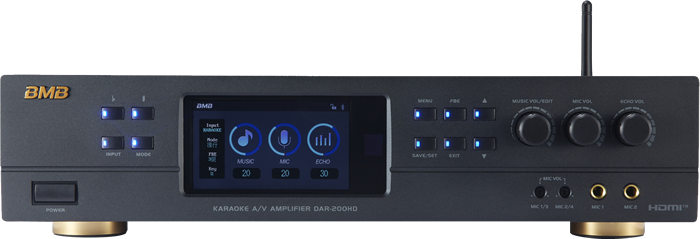

DAR-200HD
| DAR-200HD | |
|---|---|
| Stereo mode | @8Ω 1kHz 2x200W |
| Sensitivity | @8Ω 1kHz 620mV |
| Frequency Response | 20Hz-20kHz ±0.5dB |
| Total Harmonic Distortion | @8Ω 1kHz, MIC input 0.05% @8Ω 1kHz,AUX/KARAOKE input 0.05% |
| Signal to Noise Ratio | A-weighted,MIC input ≥85dB A-weiqhted, MIC mute AUX/KARAOKE input ≥96dB |
| Intermodulation distortion | @8Ω 60Hz-7kHz < 0.1% |
| Voltage gain | @8Ω 1kHz 36±1dB |
| Channel separation | @8Ω 1kHz ≥78dB |
| Input Impedance | @1kHz balance 20kΩ |
| AC power specifications | AC100V-130V(50/60Hz) 100V Model AC220V-240V(50/60Hz) 200V Model |
| Product dimensions(W*D*H) | 420mm x 290mm x 89mm |
| Packaging dimensions(W*D*H) | 561mm x 470mm x 175mm |
| Net weight | 10.2kg |
| Gross weight | 12.7kg |
Catalog
Owner's Manual
PC Editor
(DAR-HD SERIES)

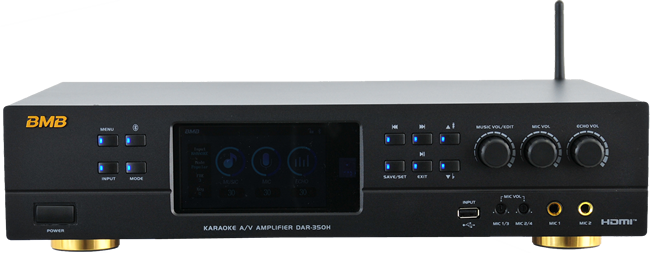

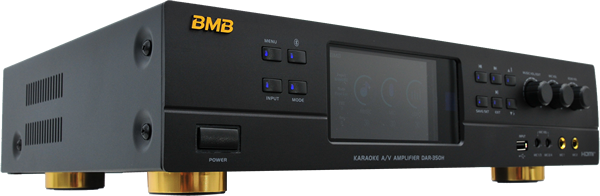

DAR-350H (SE)
| DAR-350H (SE) | |
|---|---|
| Max Output Power |
350W×2CH(8Ω): 2speakers system |
| Audio Input | 4systems (KARAOKE, AUX, Bluetooth, USB) |
| HDMI Input | 2systems |
| Mic Input | 4systems: front2, rear2 |
| USB Input | 1port(For play music) |
| Audio Output | 1system(RCA)L/R (Can be switched to pre-out/subwoofer out) |
| HDMI Output | 1system (with ARC Function) |
| Equalizer | 5bands Music, 12bands Mic, 6bands Output L/R |
| Echo | Delay, Reverb |
| FBE (Anti-Feedback) |
5levels/OFF |
| LCD Display | 4.3inch TFT Color LCD |
| AC Input | AC110V～120V (50/60Hz): DAR-350H (SE)-100 AC220V～240V (50/60Hz): DAR-350H (SE)-200 |
| Dimensions (mm) |
420(W)×102(H)×290(D) |
| Weight | 10.5kg |
| Remote Control (RMR-350) |
Including in the product |
Catalog
Owner's Manual
PC Editor
(DAR-350H)
