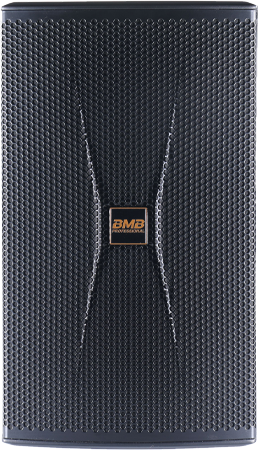

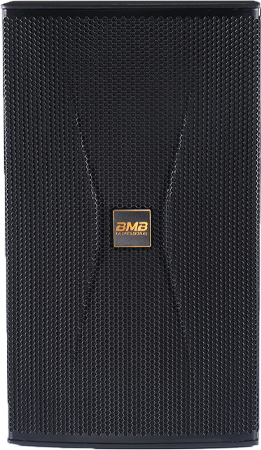

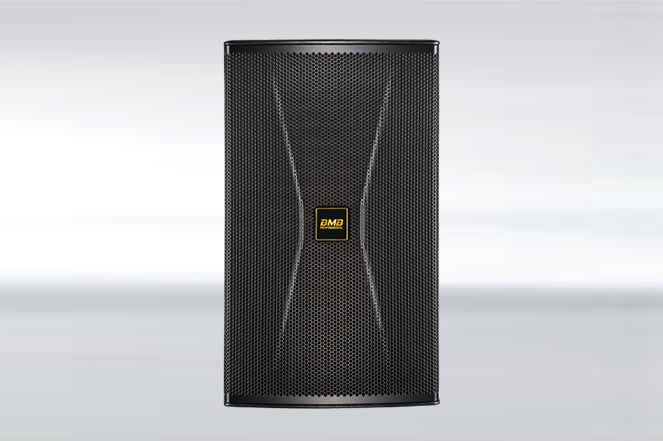

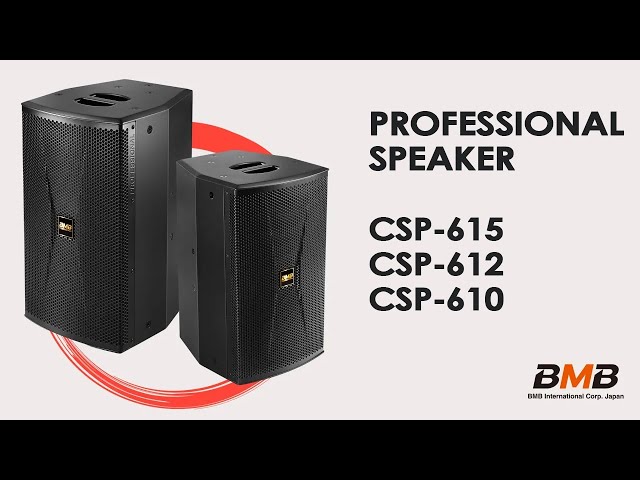

CSP Series
BMB Sound everywhere, PA type speaker Tuned for valious scene use.
- Home
- Product Info
- Professional Category
- CSP Series

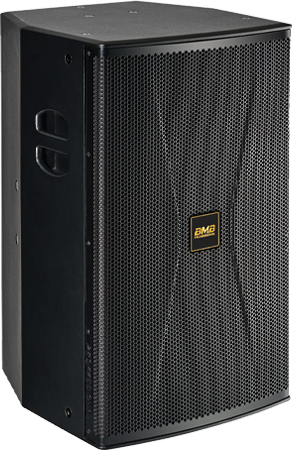

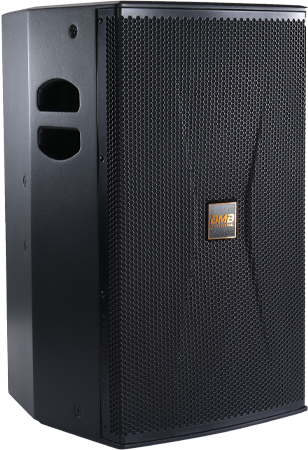

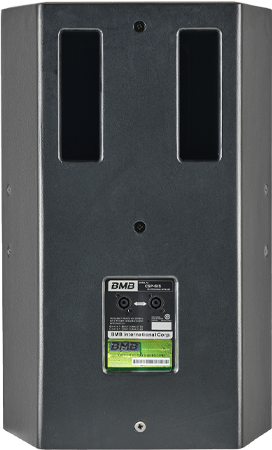

Cabinet made of high quality birch plywood assembled by box joint.
The tough structure keeps outputting powerful sound stably.
Clear high frequency sound by fine-tuned diaphragm
Selling
point
- A new type of vocal and music mixing style. Not only for KTV, but also for Bar, Club, Restaurant, various scene.
The sound is tuned to be installed various type of facility.

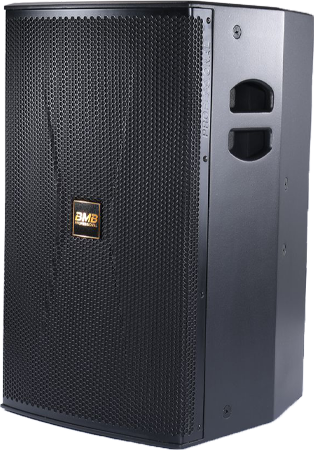

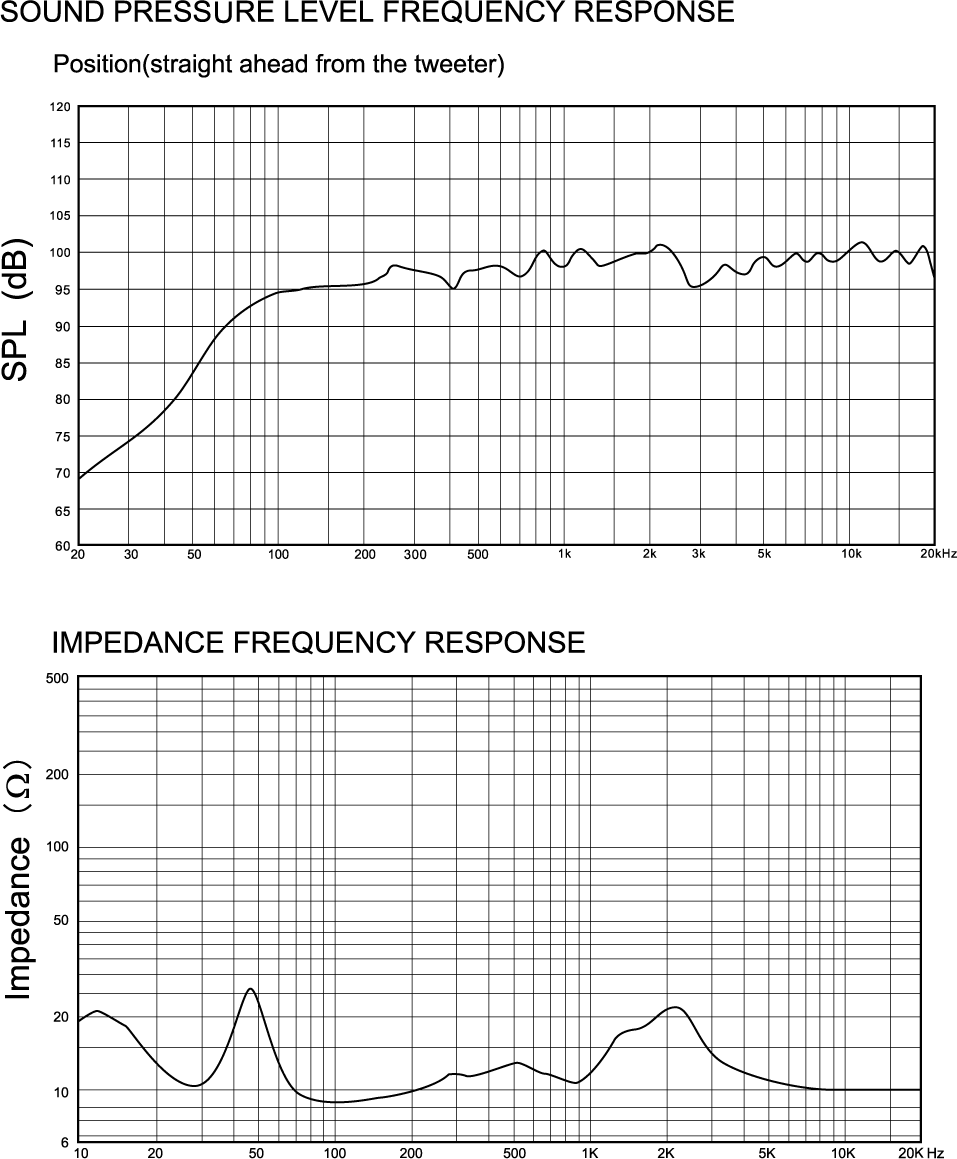

CSP-615
| CSP-615 [15"] | |
|---|---|
| System Type | Two-Way loudspeaker, bass reflex |
| Frequency Range (-10dB) *1 |
56Hz～20kHz |
| Frequency Response (±3dB) *1 |
95Hz～20kHz |
| Sound Pressure Level *2 |
97dB |
| Impedance | 8Ω |
| Max Sound Pressure Level *3 |
124dB(Peak 130dB) |
| Power Capacity | Continuous 600W, Program 1200W, Peak 2400W |
| Dimensions | (W)443mm×(H)700mm×(D)463mm (17.4"×27.6"×18.2") |
| Shipping Dimensions |
(W)550mm×(H)825mm×(D)570mm (21.7"×32.5"×22.4") |
| Net Weight | 33.5kg(73.7lbs) |
| Shipping Weight | 39.3kg(86.6lbs) |
| Input Connectors | Speaker Connector(4P)×2 |
| Pole Mount Cap | Φ36mm(1.4"), Depth 75mm(3.0") |
| Speaker unit | LF Unit:390mm(15.4") Cone, 100mm(3.9") Voice Coil×1 HF Unit:37mm(1.5") Throat, 75mm(3.0")Voice Coil×1 |
| Enclosure Construction |
15mm(0.6") Plywood |
| Accessories | Owners manual Registration card |
|
*1 Full space (4π) conditions *2 1w1m on-axis, swept-sine in anechoic environment *3 Calculated |
|

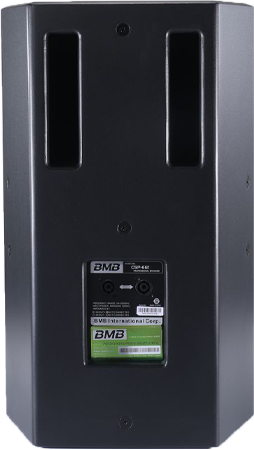

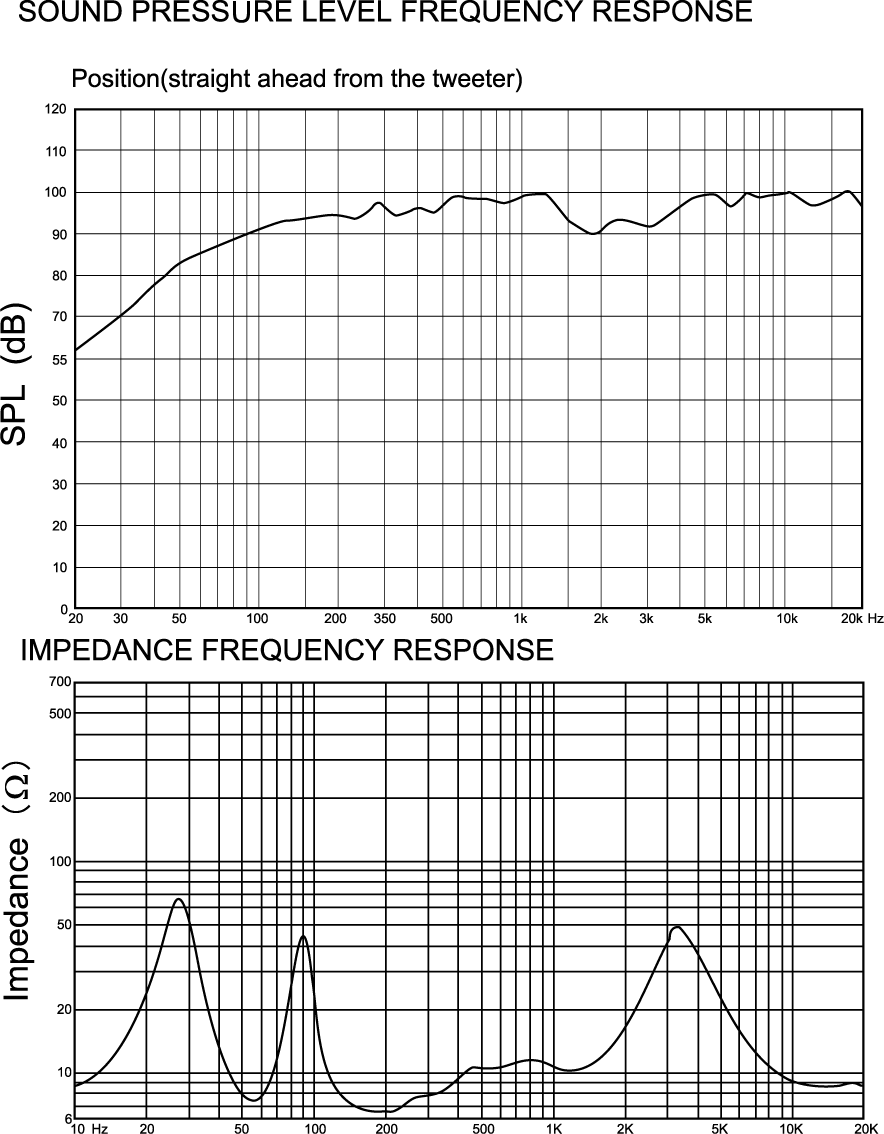

CSP-612
| CSP-612 [12"] | ||
|---|---|---|
| System Type | Two-Way loudspeaker, bass reflex |
|
| Frequency Range (-10dB) *1 |
58Hz～20kHz | |
| Frequency Response (±3dB) *1 |
110Hz～20kHz | |
| Sound Pressure Level *2 |
96dB | |
| Impedance | 8Ω | |
| Max Sound Pressure Level *3 |
122dB(Peak 128dB) | |
| Power Capacity | Continuous 400W, Program 800W, Peak 1600W |
|
| Dimensions | (W)378mm×(H)625mm×(D)408mm (14.9"×24.6"×16.1") |
|
| Shipping Dimensions |
(W)480mm×(H)735mm×(D)510mm (18.9"×28.9"×20.1") |
|
| Net Weight | 26.7kg(58.9lbs) | |
| Shipping Weight | 30.3kg(66.8lbs) | |
| Input Connectors | Speaker Connector(4P)×2 | |
| Pole Mount Cap | Φ36mm(1.4"), Depth 75mm(3.0") |
|
| Speaker unit | LF Unit:300mm(12.0") Cone, 75mm(3.0") Voice Coil×1 HF Unit:25mm(1.0") Throat, 44.4mm(1.7") Voice Coil×1 |
|
| Enclosure Construction |
15mm(0.6") Plywood | |
| Accessories | Owners manual Registration card |
|
|
*1 Full space (4π) conditions *2 1w1m on-axis, swept-sine in anechoic environment *3 Calculated |
||

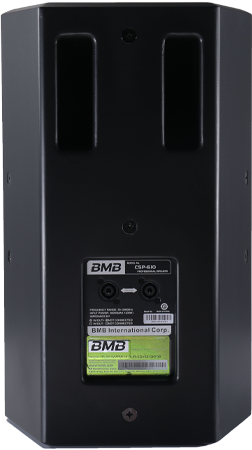

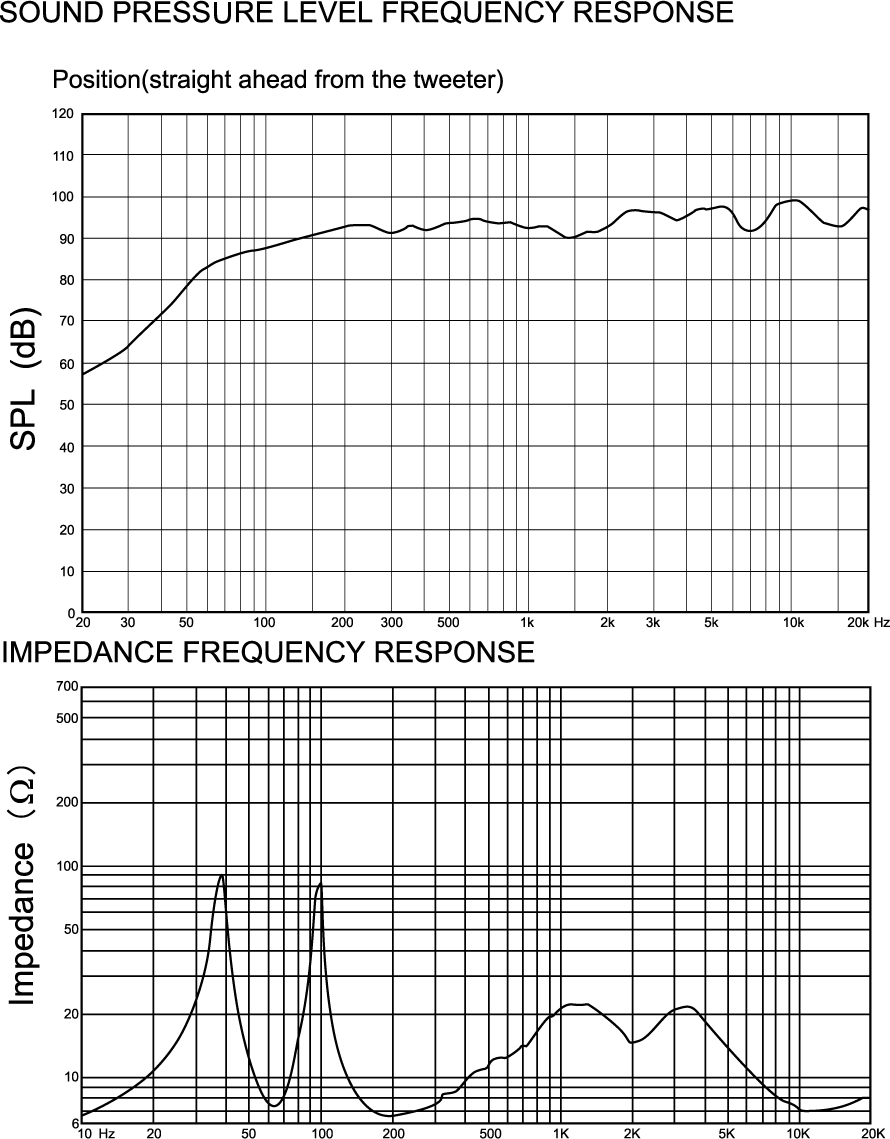

CSP-610
| CSP-610 | ||
|---|---|---|
| System Type | Two-Way loudspeaker, bass reflex |
|
| Frequency Range (-10dB) *1 |
62Hz～20kHz | |
| Frequency Response (±3dB) *1 |
107Hz～20kHz | |
| Sound Pressure Level *2 |
94dB | |
| Impedance | 8Ω | |
| Max Sound Pressure Level *3 |
119dB(Peak 125dB) | |
| Power Capacity | Continuous 300W, Program 600W, Peak 1200W |
|
| Dimensions | (W)319×(H)530×(D)357mm (12.6"×20.9"×14.1") |
|
| Shipping Dimensions |
(W)425×(H)635×(D)460mm (16.7"×25.0"×18.1") |
|
| Net Weight | 16.5kg(36.4lbs) | |
| Shipping Weight | 19.5kg(43.0lbs) | |
| Input Connectors | Speaker Connector(4P)×2 | |
| Pole Mount Cap | Φ36mm(1.4"), Depth 75mm(3.0") |
|
| Speaker unit | LF Unit:250mm(10.0") Cone, 65mm(2.6") Voice Coil×1 HF Unit:25mm(1.0") Throat, 34.4(1.3")mm Voice Coil× 1 |
|
| Enclosure Construction |
15mm(0.6") Plywood | |
| Accessories | Owners manual Registration card |
|
|
*1 Full space (4π) conditions *2 1w1m on-axis, swept-sine in anechoic environment *3 Calculated | ||
