Circuit safety protection will prevent damage in case of accident.
Case size is standard 2U.
Switch 2 type of output system. (Stereo / Bridge)

Selling
point

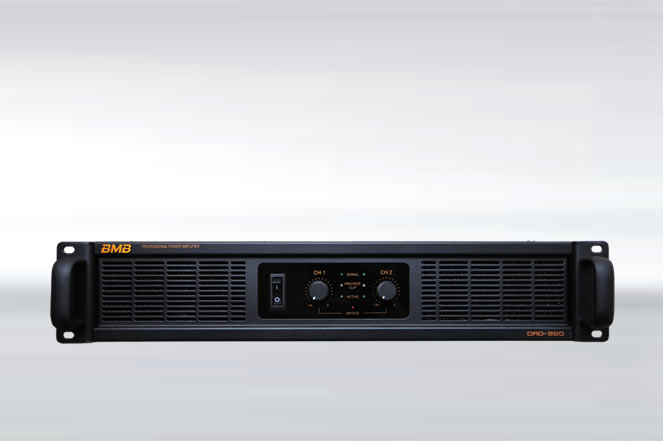

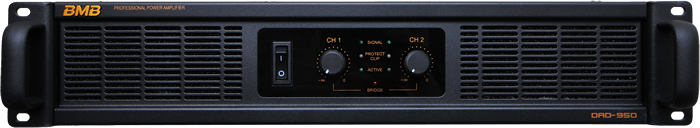

DAD-950

DAD-950 (SE)
Rating Output Power
1kHz THD=@1%
1200W×2CH(4Ω)
:stereo mode
950W×2CH(8Ω)
:stereo mode
1800W×1CH(8Ω)
;bridge mode
Frequency
Characteristic
(20Hz~20kHz、8Ω)
±0.3dB
THD(8Ω,1kHz) 0.02%
SN Ratio 105dB over
Damping factor
(100Hz 8Ω)
250 over
Voltage Gain 40±2dB
Channel Separation
(20Hz~1000Hz 8Ω)
85dB over
Input Impedance 20kΩ(balance)

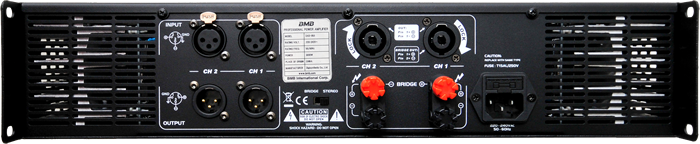

Audio Input
Connectors
XLR type×2CH
Output Connectors Neutrik SpeakON® NL4MP(1+/1-)
Screw type(+/-)
HPF Switch 50Hz/PASS
Ground Switch GND/FLOAT
AC Input 220V~240V
(50/60Hz)
Power Consumption
(1/8 Output
Pink noise 8Ω)
3000W
Cooling Fans Automatic air volume control fans
Dimensions
(mm)
482(W)×89(H)×423(D)
Weight 24.0kg

Catalog Owner's Manual

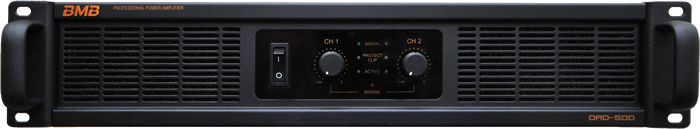

DAD-500

DAD-500 (SE)
Rating Output Power
1kHz THD=@1%
700W×2CH(4Ω)
:stereo mode
500W×2CH(8Ω)
:stereo mode
1000W×1CH(8Ω)
:bridge mode
Frequency
Characteristic
(20Hz~20kHz、8Ω)
±0.3dB
THD(8Ω,1kHz) 0.02%
SN Ratio 103dB over
Damping factor
(100Hz 8Ω)
250 over
Voltage Gain 40±2dB
Channel Separation
(20Hz~1000Hz 8Ω)
85dB over
Input Impedance 20kΩ(balance)

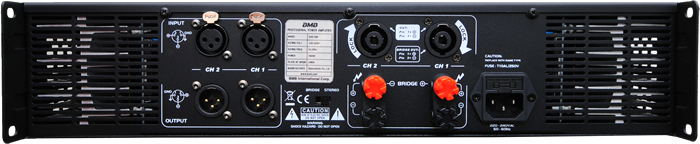

Audio Input
Connectors
XLR type×2CH
Output Connectors Neutrik SpeakON® NL4MP(1+/1-)
Screw type(+/-)
HPF Switch 50Hz/PASS
Ground Switch GND/FLOAT
AC Input 220V~240V
(50/60Hz)
Power Consumption
(1/8 Output
Pink noise 8Ω)
1900W
Cooling Fans Automatic air volume control fans
Dimensions
(mm)
482(W)×89(H)×423(D)
Weight 19.0kg
