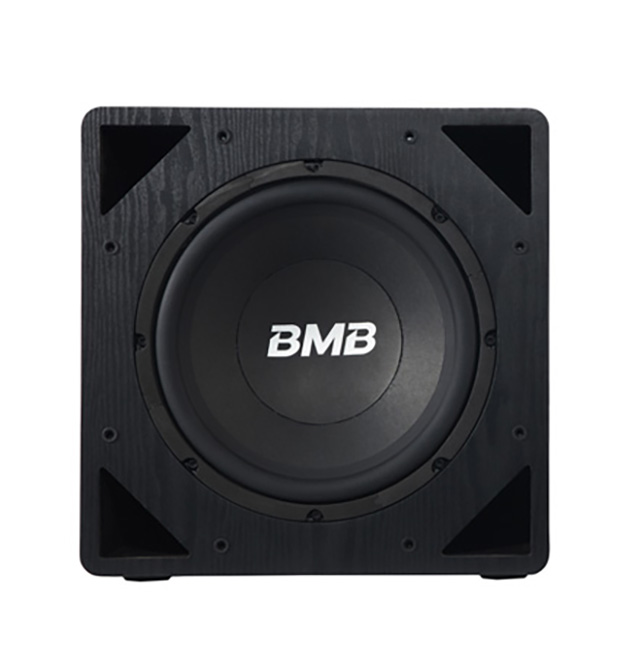

Four triangle bass reflex. Reflection of bass sound spreads out faster and makes singing Karaoke easier.
CSW Series adopts high-performance driver module, equipped with volume, crossover, phase, two inputs and 110V/220V selector.

Selling
point

Four triangle bass reflex

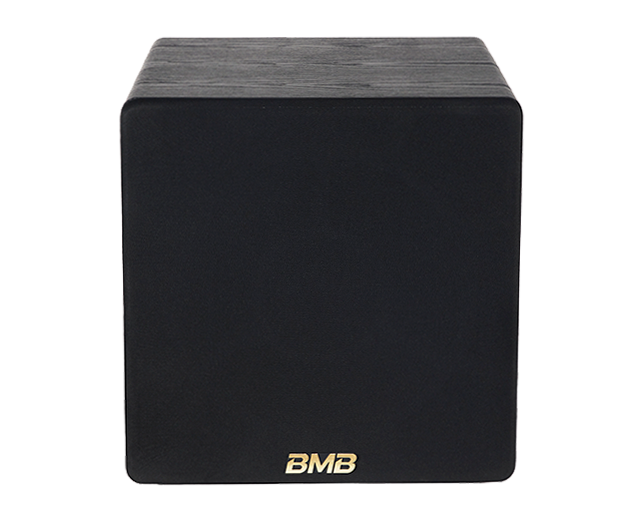

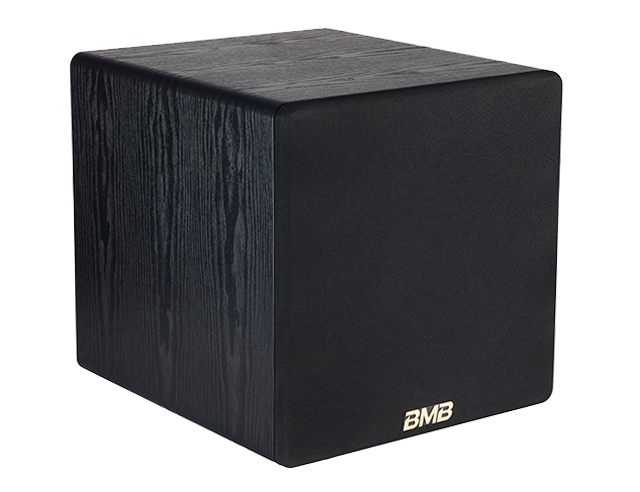

CSW-112A

CSW-112A [12'']
System
Type
Active Subwoofer, Bass Reflex Type

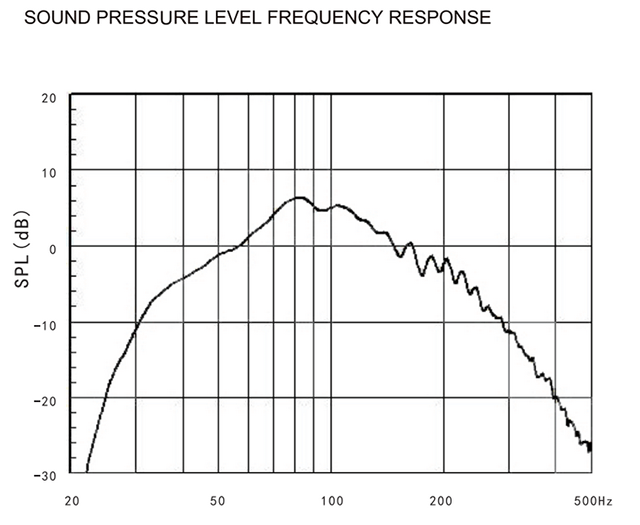

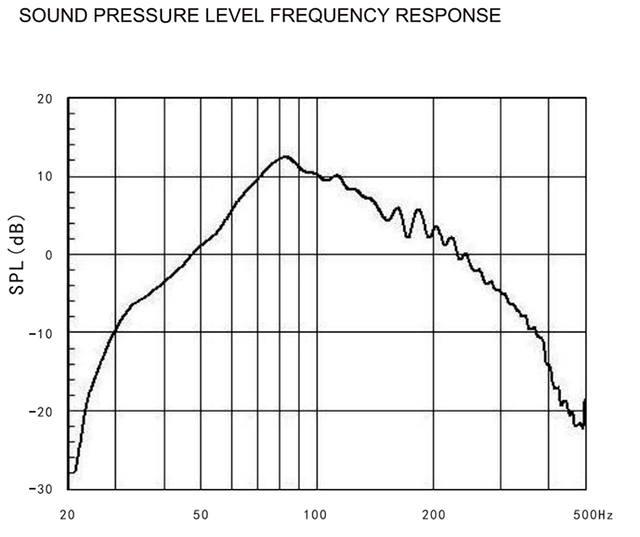

Frequency
Range(-10dB) *1
31Hz-200Hz
Power
Consumption1
300W
Dimensions
(HxWxD)
410mm x 400mm x 440mm (16.1" x 15.7" x 17.3")
Shipping Dimensions
(HxWxD)
485mm x 470mm x 505mm (19.1" x 18.5" x 19.9")
Net
Weight
19.6kg (43.2lbs)
Shipping
Weight
22.5kg (49.6lbs)

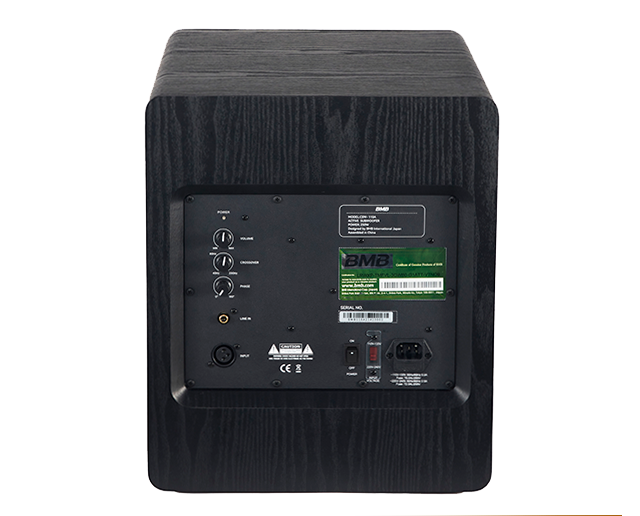

Input Connectors RCA x1, XLR x1
Speaker
Unit
Woofer Unit : 308mm(12.1")Cone, 65mm(2.6")Voice Coil x 1

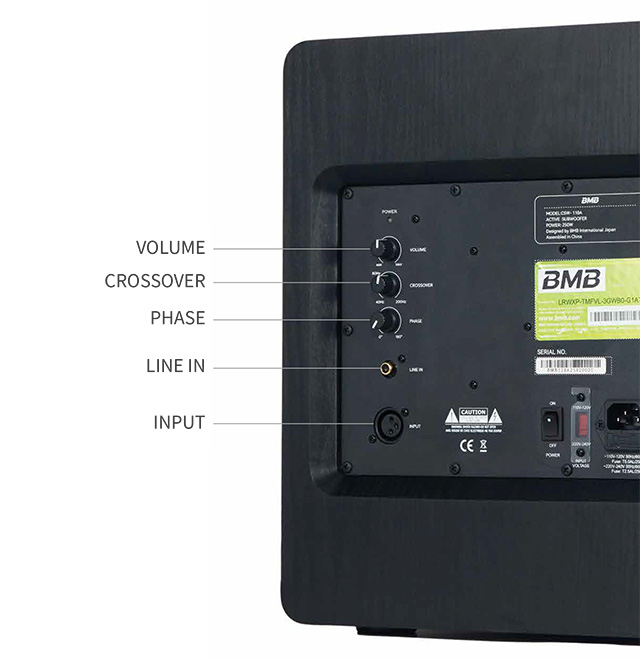

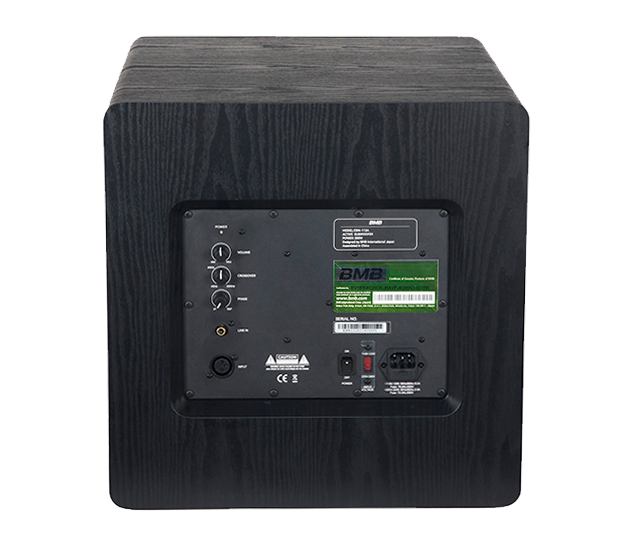

Controls VOLUME
CROSSOVER (40Hz-80Hz-200Hz)
PHASE (0°- 180°)
Indicator Power (ON:Green LED, During Startup: Red LED)
Input
Voltage
AC 110V-120V 60Hz, 220V-240V 50Hz
Enclosure
Construction
15mm(0.6")MDF
*1 Full space (4π) conditions

Catalog Flyer Owner's Manual

CSW-110A

CSW-110A [10'']
System
Type
Active Subwoofer, Bass Reflex Type
Frequency
Range(-10dB) *1
33Hz-200Hz
Power
Consumption1
250W
Dimensions
(HxWxD)
385mm x 325mm x 410mm(15.1" x 12.8" x 16.1")
Shipping Dimensions
(HxWxD)
460mm x 395mm x 475mm(18.1" x 15.6" x 18.7")
Net
Weight
16.1kg(35.5lbs)
Shipping
Weight
18kg (39.7lbs)
Input Connectors RCA x1, XLR x1
Speaker
Unit
Woofer Unit : 275mm(10.8")Cone,50mm(2")Voice Coil x 1
Controls VOLUME
CROSSOVER (40Hz-80Hz-200Hz)
PHASE (0°- 180°)
Indicator Power (ON:Green LED, During Startup: Red LED)
Input
Voltage
AC 110V-120V 60Hz, 220V-240V 50Hz
Enclosure
Construction
15mm(0.6")MDF
*1 Full space (4π) conditions

Catalog Flyer Owner's Manual
