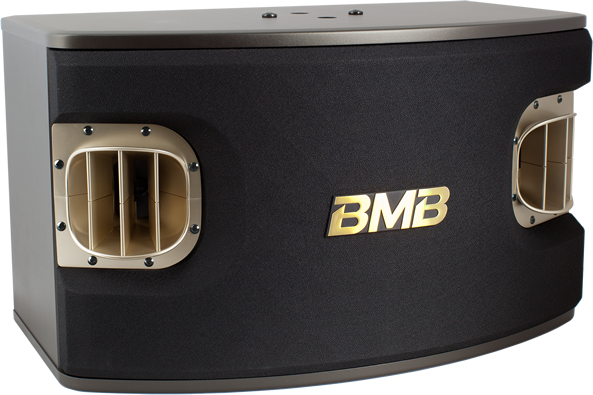

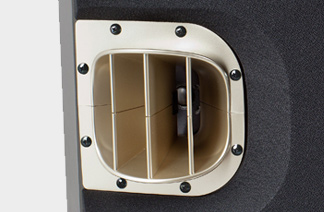

Multicellular horn(CSV-900)
CSV Series
Clear & powerful notes for next generation Karaoke speakers
- Home
- Product Info
- Commercial Category
- CSV Series
These speakers feature the new multicellular horn tweeters/squawkers to reproduce a wide sound.
Tweeter SPL* switch is used for preventing howling. *SPL: Sound Pressure Level
Woofers use highly reliable paper cone made in Japan to obtain high quality sound.
Selling
point
- The best seller model in the world
- Wide sound (Multicellular horn)
- Adjustable according to room by sound quality switch

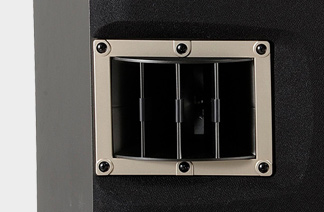

Multicellular horn(CSV-450)

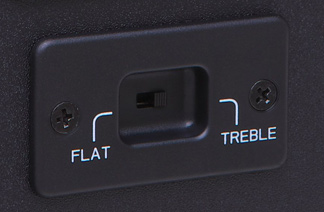

Sound pressure level switch

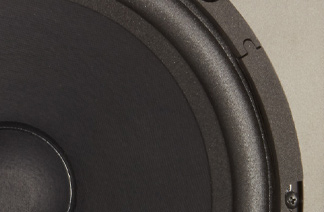

Highly reliable paper cone Made in Japan

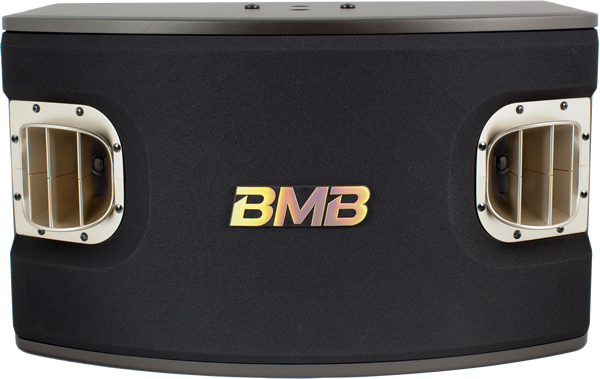

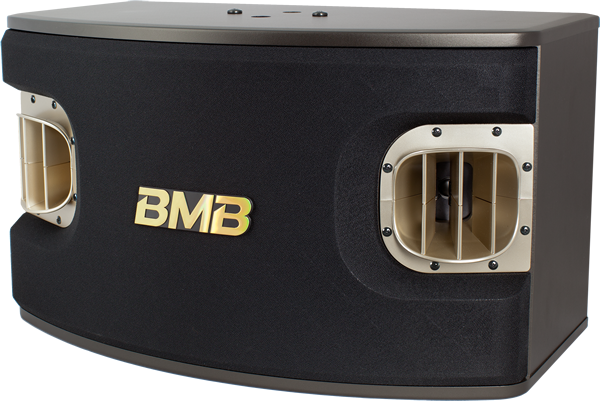

CSV-900
| CSV-900 [12"] | |
|---|---|
| System | 3Ways 3Speakers |
| Woofer Unit |
30cm Paper Cone Type ×1unit |
| Squawker Unit |
8cm Paper Cone Type ×1unit |
| Tweeter Unit |
8cm Paper Cone Type ×1unit |
| Max Input Power |
1200W |
| Rating Input Power |
500W |
| Dimensions (mm) |
600(W)×348(H)×340(D) |
| Weight | 17.5kg per piece |
| Impedance | 8Ω |

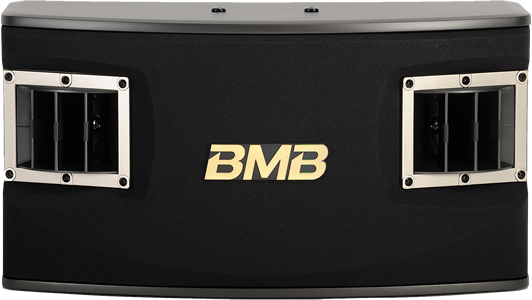

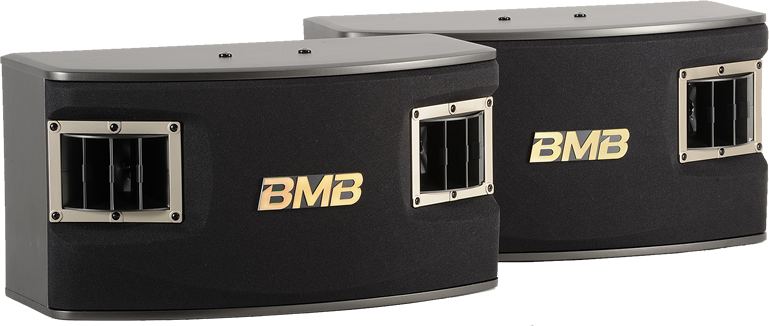

CSV-480
| CSV-480 [10"] | |
|---|---|
| System | 3Ways 3Speakers |
| Woofer Unit |
25cm Paper Cone Type ×1unit |
| Squawker Unit |
8cm Paper Cone Type ×1unit |
| Tweeter Unit |
8cm Paper Cone Type ×1unit |
| Max Input Power |
500W |
| Rating Input Power |
250W |
| Dimensions (mm) |
560(W)×292(H)×297(D) |
| Weight | 11.5kg per piece |
| Impedance | 8Ω |

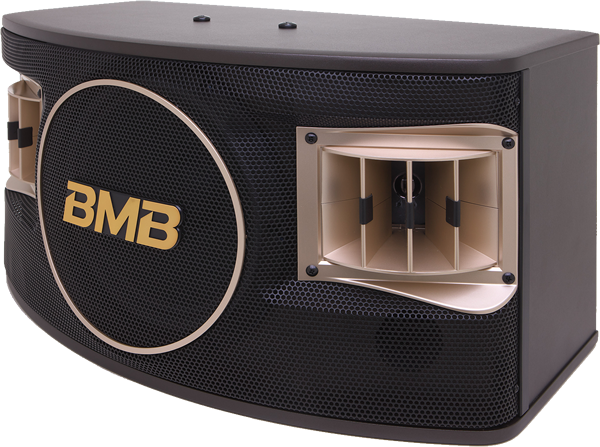

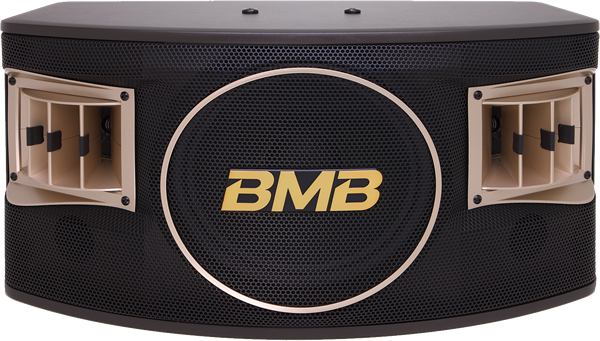

CSV-450
| CSV-450 [10"] | |
|---|---|
| System | 3Ways 3Speakers |
| Woofer Unit |
25cm Paper Cone Type ×1unit |
| Squawker Unit |
8cm Paper Cone Type ×1unit |
| Tweeter Unit | 8cm Paper Cone Type ×1unit |
| Max Input Power |
500W |
| Rating Input Power |
250W |
| Dimensions (mm) |
558(W)×292(H)×297(D) |
| Weight | 11.5kg per piece |
| Impedance | 8Ω |
